3 TOUCH DISPLAYS

Three 7-inch touch screens give you direct access to track info such as titles, BPM and key using deck display mode, and enlarged waveforms for each track, as well as loops and Hot Cues in mixer display mode. You can use the displays to preview/monitor video and image files, trigger Beat FX and Release FX, while Touch FX lets you add FX and adjust parameters by tracing on the x and y axes on the display. All without having to touch your laptop.

DEDICATED MIC SECTION

2 XLR combo input jacks give distortion-free Mic output even at loud volumes. The dedicated 3-band EQ and Mic FX - Echo, Reverb, Pitch or V-Tune - let you tune each voice to give your performance just that little extra.

ADVANCED FX

The DDJ-RZX is stacked with pro-DJ FX controls for rekordbox dj and external sound sources. You can apply Sound Color FX and Beat FX simultaneously, and trigger Release FX to reset them instantly to create a break. Plus you can add sub parameters to the Sound Color FX or use Sampler Repeat to change the length of a loop.

REKORDBOX VIDEO

You get a free licence key for rekordbox video bundled with this controller. Use it to load videos and image files to the decks from a laptop or stream live footage from a USB camera, then add text overlays and FX in real-time. You have the option to prepare your video sets in rekordbox or mix your visuals on the fly.

Main Features

• P-LOCK Fader Cap: Yes
• Plug and Play: Yes
• Auto Standby: Yes
• Included Software
• rekordbox dj
• rekordbox video
• rekordbox dvs
• Software System Requirements

OS

• Windows: 10, 8.1, 7 (64-bit, the latest service pack)
• Mac OS X: 10.11, 10.10, 10.9 (Updated to the latest version)

Minimum system requirements

• CPU: 2.5GHz dual-core Intel® Core™ i5 or higher
• Memory: 8GB or more of RAM
• Hard Drive: 250MB or more of free space (not including space for storing music files, etc.)
• Display resolution: Resolution of 1280 x 768 or greater

Recommended system requirements

• CPU: 2.2GHz quad-core Intel® Core™ i7 or higher
• Memory: 16GB or more of RAM
• Hard Drive: 250MB or more of free space (not including space for storing music files, etc.)
• Display resolution: Resolution of 1280 x 768 or greater

Specifications

• Width: 37.2 in
• Height: 4.71 in
• Depth: 21.54 in
• Weight: 35.05 lb
• Soundcard: 24 bit/96 kHz
• Frequency Range: 20 - 20,000 Hz
• Signal-to-Noise Ratio: 116 dB
• Distortion: < 0.002 % (USB)
  < 0.003 % (CD/LINE)
• Power Consumption: 48 W
• Power Consumption (Standby): < 0.4 W

Performance Control

• Channels: 4
• Deck Control: 4 / Dual
• Trim knob: Yes
• Jog Wheel: 202 mm durable aluminium jog wheel
• Feeling Adjust: Yes
• Pad FX: Yes
• Filter: High & Low Pass filter
• Colour FX: Crush, Echo, Filter, Jet, Pitch, Space
• Release FX: Back spin, Echo, Vinyl brake
• FX Parameters: 3knob x 3button
• Sampler: 16slot x 4bank
• Oscillator Sampler: Horn, Noise, Sine, Siren
• Hot Cues: 8
• Sequencer: Yes
• Sequence load: Yes
• Sequence call: Yes
• Manual Loop: Yes
• Auto Beat Loop: Yes
• Beat Jump: Yes
• Slip Mode: Yes
• Needle Search: Yes
• Talkover Function: Yes
• EQ Isolator: Yes

Fader

• Fader Start: Yes
• Crossfader Curve Adjust: Yes

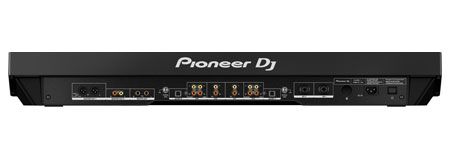

Terminals

• Inputs: 2 PHONO (RCA), 4 CD/LINE (RCA), 2 MIC (XLR/Jack Combo)
• Outputs: 1 BOOTH (1/4 inch TRS Jack), 2 HEADPHONE MONITOR (1/4 inch Jack, mini-jack), 2 MASTER (XLR, RCA)
• USB: 2 USB B ports
