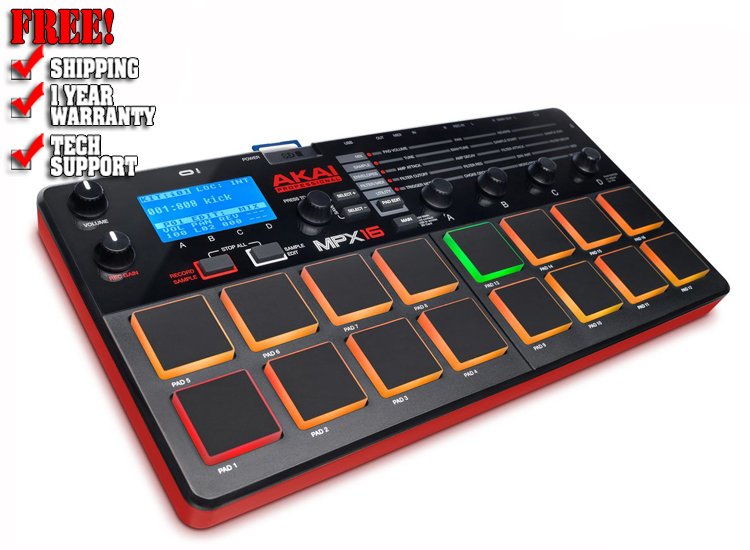

Akai MPX16

USB & MIDI

MPX16's flexibility goes beyond pad-triggered audio playback and capture. The full-size rear-panel USB port lets you drag & drop samples from your computer and even use the MPX16 as an SD card reader/writer. The USB connection also provides a pipeline for MIDI data, enabling sample triggering from your DAW or computer-based sequencer. A 5-pin MIDI input means SD samples may be triggered from any MIDI-enabled gear such as keyboards, pad controllers, synths and electronic drums. A 5-pin MIDI output lets the MPX16 function as a dynamic pad controller. Layering wide-ranging sound sources during live and studio performance just got easier.

Edit with Ease

With the included Akai Pro MPX File Conversion Utility software (free download), managing computer-based samples and moving them to the SD card is intuitive. This software converts sound files into .WAV format for seamless playback on the MPX16. Samples may be edited from the MPX16's onboard sample processor; tuning, pad groups, envelopes, sample trimming, panning, and volume are tweakable right from the MPX16's top-panel controls.

Ready to go

MPX16's compact footprint means it is at home on a tabletop, music stand, lap, tray-table or in your backpack en route to the studio. Solid Akai Pro design and industry-leading pads ensure it stands up to the daily use you expect it to see.

Features

• Record and play back stereo .WAV samples using any SD card (sold separately)
• 16 velocity-sensitive MPC-style backlit pads for sample-triggering and finger drumming
• Sample via 1/4-inch (6.3mm) stereo inputs or onboard stereo microphone
• Filter, tune, envelope, and choke grouping on each pad for dynamic performances
• Pro-quality sampling and playback with up to 16-bit/48 kHz resolution
• MIDI In/Out easily integrates MPX16 into your performance or studio setup
• Acts as a MIDI Controller or an SD card reader for loading sounds over USB (selectable on startup)
• Powered over USB or with the included power supply
• Includes MPX File Conversion Utility software (download) for quick conversion and loading of audio files from your computer

Specifications

• Pads : (16) velocity-sensitive
• MIDI over USB : Yes
• Power
  • 5.8V DC
  • 860mA battery (included)
  • USB
• Inputs
  • (2) 1/4-inch (6.3mm)
  • (8) banks accessible via Pad Bank buttons
  • (1) 5-pin MIDI
• Outputs
  • (2) 1/4-inch (6.3mm)
  • (1) 1/4-inch headphone
  • (1) 5-pin MIDI
  • USB-MIDI

Documents

• MPX16 - User Guide (3.68 MB)
• MPX16 - Firmware Update v1.0.19 (1.20 MB)
• MPX16 - File Conversion Utility v1.0.6 (Mac) (1.41 MB)
• MPX16 - File Conversion Utility v1.0.6 (Windows) (1.72 MB)
• MPX16 - Media Images (6.49 MB)
