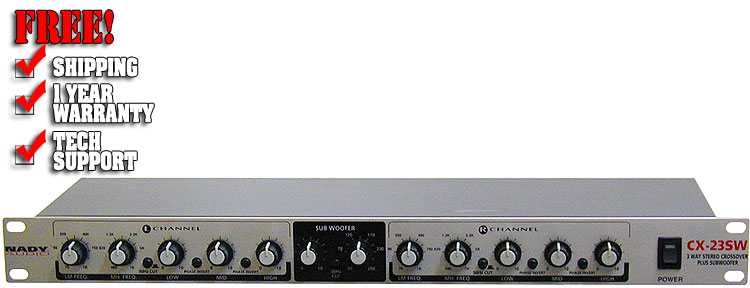

Nady CX-23SW

Description

Crossovers provide precise frequency dividing for multi-amplified speaker applications, and are valuable tools in many professional live sound uses. The CX-23SW offers 3-way active LOW/MID/HIGH outputs for each stereo channel and a mono subwoofer output. It is simple to set up and operate and is the perfect choice for basic multi-amps, multi-speaker stereo installations.

Features:

• Single rack space (1U)
• Shielded internal power supply with AC voltage select switch (~115V/60Hz or ~230V/50Hz)
• Phase inversion switches
• Low-cut subsonic filters for low frequency driver protection
• Servo-balanced XLR inputs
• Superior performance with transparent audio
• Crossover Type: Stereo 3 ways + Subwoofer
• Crossover Frequencies: Subwoofer<: 50 - 250Hz / LM: 70 - 1000Hz / MH: 480 - 7000Hz
• Filter Type (Slope): 2nd order, 12dB/Octave
• Inputs: Impedance: 100 Kohms
• Outputs: Type: Balanced XLR / Impedance: 220 Ohms
• Low Cut Filters: 30Hz/ - 3dB, 12dB/Octave
• Frequency Response: 25Hz - 25KHz +/-1dB
• Total Harmonic Distortion (THD) + Noise: < 0.05%
• S/N Ratio: > 80 dB
• Fuse: 0.5 A/ 250V, 5x20mm glass type
• Dimensions: 19 x 1.73 x 5.9 in. (483 x 44 x 150mm)
• Weight: 4.4 lbs. (2.2 kg)
