Rane DC-24

Description

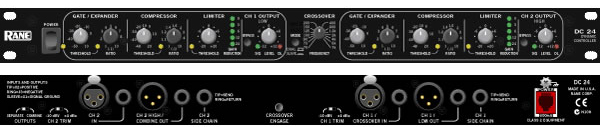

The Rane Model DC 24 Dynamic Controller is a two channel Compressor, Limiter, Expander Gate system with very unusual attributes. The DC 24 offers unprecedented control of its operating parameters as well as a built-in 24 dB/octave Linkwitz-Riley Crossover, giving it very impressive capabilities. Total freedom from control interaction highlight the DC 24 as well as the availability of separate Compressor and Limiter controls. The Compressor offers control over both Ratio and Threshold, while the Limiter allows setting a separate Threshold. In doing this, the DC 24 allows the operator to create a smooth transition between subtle compression over a wide dynamic range and peak-stop limiting at the sound system's highest allowable level. If that's not enough, the DC 24 also offers independent Expander/Gate Ratio and Threshold controls. This third level of signal manipulation makes the DC 24 a most useful and revolutionary device.

Features:

• Compression & Expander/Gate Ratio & Threshold Controls
• Limiter Threshold Controls
• Program Dependent Attack & Release
• Linkwitz-Riley Crossover with 24 dB per Octave Slopes
• Low-High Crossover Mode (1 In/2 Out)
• Bandsplit Combine Mode (1 In/1 Out)
• Stereo/Dual Modes (2 In/2 Out)
• Side Chain Insert Jacks
• Balanced XLR & ¼" TRS Connectors
• -10 dBV / +4 dBu Gain Switch
• UL/CSA Remote Power Supply (120 VAC)
• CE (Low Voltage & EMC) Remote Power Supply (230 VAC)
