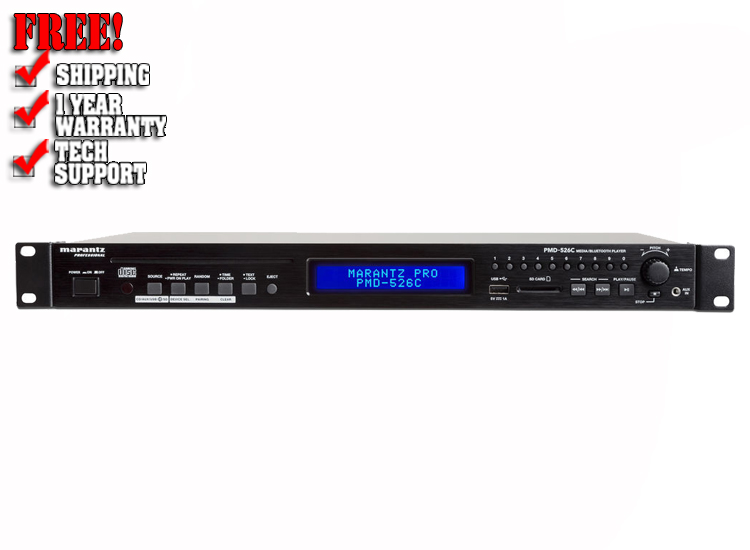

Marantz Professional PMD-526C CD/Media/Bluetooth Player with RS-232c Control

The PMD-526C from Marantz Professional is a media player which can play audio from CDs, CD-Rs, USB formats, and SD/SDHC cards; it also provides a 3.5mm auxiliary input for compatible devices and Bluetooth connectivity for streaming audio wirelessly. With such a wide array of connection possibilities, the unit is suitable both for home audio and commercial applications—and with tempo lock and pitch control, the applications for this device are greatly increased, making it useful for use in dance and fitness applications, as well as retail settings, education scenarios, and more.

Other features include front panel lock, power on play, direct access to tracks with 10 buttons, the ability to recall settings after loss of power, Bluetooth pairing for up to eight devices at a time, and balanced XLR outputs for hookup to pro audio rigs. The PMD-526C also offers RS-232c control, and includes a remote for operation from a distance. Also included are two rack ears and six screws for mounting the unit in a professional audio rack.

Features:

• Bluetooth 4.0 pairing to (8) devices
• Slot-loading CD transport
• Playback from SD/SDHC media
• USB host port for file playback
• Pitch and tempo control
• 10-button direct track access
• 3.5mm Aux input for playback from portable players
• RS-232c control capable
• Balanced and unbalanced outputs (XLR and RCA)
• Included RCA cable

Specifications

• Performance
  • Frequency Response : 10 Hz to 20 kHz ± 1 dB
  • Frequency Range 10 Hz to 20 kHz
  • Dynamic Range >85 dB
  • Max Output Level +4 dBu (Balanced)
  • I/O Impedance Input:10 kOhms , Output:10 kOhms
  • Signal to Noise Ratio >90 dBA
  • Max Sample Rate/Resolution 44.1 kHz
  • Total Harmonic Distortion (THD)
  • Bit Rates 32 to 320 kb/s + VBR

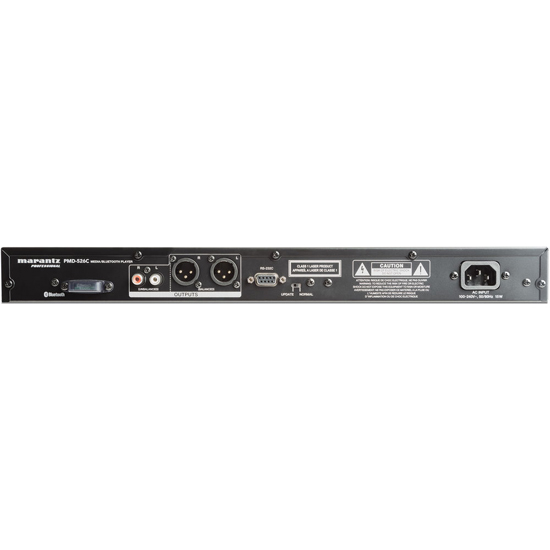

• Connectivity
  • Audio Ports: 1 x 1/8" / 3.5 mm TRS Input, 1 x 2RCA Unbalanced, 2 x XLR Balanced
  • Video Ports None
  • USB Ports None
  • Network I/O None
  • Control Ports 1 x DE-9/DB-9RS-232C
  • Bluetooth 4.0
  • Bluetooth Range 49' / 15 m
  • Supported Bluetooth Profiles : A2DP, AVRCP, HFP, SPP
• Compatibility
  • Supported Disc Types CD-DA, CD-R, CD-ROM
  • Audio File Formats MP3, WAV
  • Supported File Systems FAT16, FAT32
  • Supported Audio Codecs AAC
  • Digital Media Slot None
• General
  • Power Consumption 15 W
  • AC Input Power 100 to 230 VAC, 50 / 60 Hz
  • Operating Temperature 41 to 95°F / 5 to 35°C
  • Operating Humidity 25 to 85%
  • Dimensions 19.0 x 1.7 x 9.4" / 483.0 x 240.0 x 44.0 mm
  • Weight 6.4 lb / 2.9 kg
• Packaging Info
  • Package Weight 10.4 lb
  • Box Dimensions (LxWxH) 20.551 x 13.858 x 5.276"
