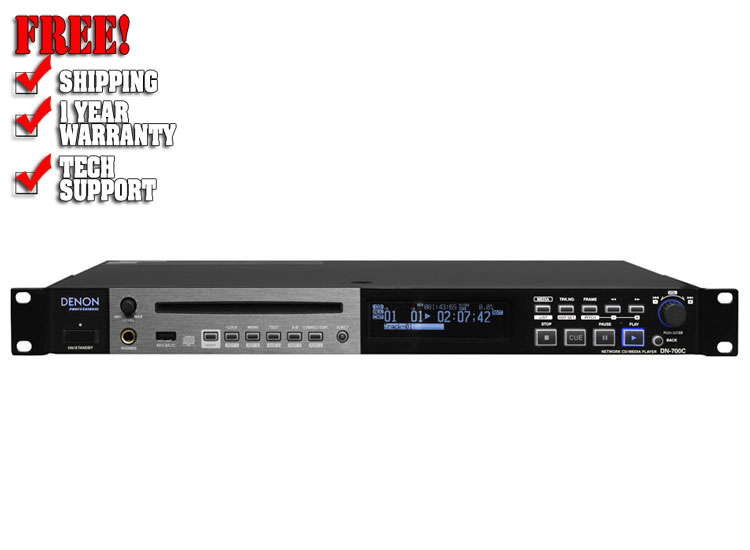

Denon DN-700C

Features:

• Streams audio over the network (DLNA)
• Supports playback of CD-DA, WAV, AIFF, MP3 & AAC files
• USB device (mass storage class) and iPod playback
• Large, bright OLED display
• Balanced XLR audio output
• AES/EBU digital format output
• Supports external control operation via IP Control (Ethernet), RS-232c, GPIO, and IR
• Extended control via Ethernet using its improved web-GUI 'Web Remote' and/or included DENON Professional Product Manager software (PC/Mac)
• 20 Hot Starts
• Supports the Denon Professional Pitch Control App (available from the App Store™)
• Pitch control playback allows adjustment of the playback speed between -16% to +16% in 0.1% steps
• End Monitor and User-selectable Finish Mode features
• 1RU/1HE Rackmount Size
• Detachable, IEC-weighted AC inlet

Specification:

Digital Audio System

• System: Network CD / Media Player
• Compatible media: CD Media, USB flash memory, USB HDD, iPod
• Playable formats, file systems: CD
• CD-DA (CD Text), CD-ROM (ISO9660)
• USB: FAT16 / FAT32 / HFS+

Playable WAV Format

• Extension: WAV, AIFF, AIF
• Resolution: 16 / 24–bit
• Sampling Frequency: 96, 48, 44.1kHz

Playable MP3 Format

• Extension: MP3
• Bit rate: 32–320kbps, VBR
• Sampling Frequency: 48, 44.1kHz

Playable AAC Format

• Extension: M4A
• Compression method: AAC-LC
• Bit rate: 64–320kbps, VBR
• Sampling frequency: 48, 44.1kHz

• Number of channels: 2 (stereo), 1 (mono)
• Audio frequency characteristics: 20 Hz – 20 kHz (+0.5dB)
• S/N ratio: More than 105dB (A-Weighted)
• Total harmonic distortion Less than 0.005%
• Dynamic range: More than 105dB (for 24–bit WAV playback)
• Channel separation: Less than –106dB
• Variable pitch width: –16% - +16%
• Variable trim adjustment width: +2.0dB

Output

• 0dBu=0.775Vrms, 0dBV=1.0Vrms
• Balanced Analog Out L/R
• Type: XLR (1:GND, 2:HOT, 3:Cold)
• Load impedance: Over 600Ω
• Output level: 8.23 dBu (Max. 24 dBu)/ at 600Ω

Unbalanced Analog Out L/R

• Type: RCA terminal
• Load impedance: Over 10kΩ
• Output level: 2 Vrms (Max 10dBV)/ at 10kΩ

Balanced Digital Out

• Type: XLR (1:GND, 2:HOT, 3:Cold)
• Output impedance: 110Ω
• Standard output level: 3.5 Vp–p
• Format: IEC–60958 (AES/EBU)

Unbalanced Digital Output

• Type: RCA terminal
• Output impedance: 75Ω
• Standard output level: 0.5 Vp–p
• Format: IEC–60958 (Coaxial)

Headphone output

• 20 mW / 32Ω

Environmental Conditions

• Operational temperature: 5 to 35°C (41 to 95°F)
• Operational humidity: 25 to 85% (no condensation)
• Storage temperature: -20 to 60°C (-4 to 140°F)

General

• Power consumption: 30W, 0.4W (standby)
• Power supply
• AC 120V, 60Hz (USA and Canada models)
• AC 230V, 50/60Hz (European, U.K. and Asia Pacific models)
• AC 100V, 50/60Hz (Japan model)
• Dimensions (width x depth x height, with rack ears)
• 19.00" x 12.78" x 1.73" (483 mm x 325 mm x 44 mm)
• Weight : 9 lbs 0.62 oz (4.1 kg)

In the Box:

• DN-700C
• Owner's manual (book)
• Owner's manual (CD-ROM)
• Power cords for each region (US, EU, JP)
• Power plug conversion adapter (3 pin -> 2 pin)
• Remote control unit (RC-1177)
• AAA Batteries x2
