Denon DN-300Z

CD/Media Player with Bluetooth®/USB/SD/Aux and AM/FM Tuner

The front panel's backlit LCD screen provides at-a-glance status of playback modes and content, providing clear readouts to even the most novice user. Designed to adapt to any scenario, switching formats on the fly has never been easier. Media categories and their respective controls are grouped together so users will never have to wrestle with deep menus or use the instruction manual to perform basic functions. Direct access to CD tracks, global transport controls (play/pause/search), and a rotary-push encoder translate to fast, hands-on command when you need to get to your content.

An IEC-weighted AC power port means space-saving connection to power sources—no bulky transformers or "wall warts" required. When installed into a client's rack, the DN-300Z provides the capability, reliability, and versatility to tackle any playback task, from one-off requests to rehearsed program material, in an intuitive, tidy package.

The DN-300Z media player expects the unexpected. But you demand it.

Features:

• Super-fast loading, slot-in CD player
• Supports removable USB thumb and HDDs, SD/SDHC cards
• Wireless audio playback from tablets and smartphones via Bluetooth
• Selectable Power-On-Play mode automatically plays USB, SD or CD tracks when powered up — simply turn it on
• Up to 100 foot (30m) wireless Bluetooth range
• Plays CD-DA, MP3, WAV, and AAC files
• 3.5mm (1/8-inch) input for audio playback of any audio device with a 3.5mm output
• AM/FM Tuner w/ dedicated audio out for multi-room use
• RCA and balanced XLR audio outputs
• 10-key direct track access
• Random, repeat, and single play playback modes
• Remembers up to 8 Bluetooth devices for simple switching of wireless audio sources
• Folder only and All play modes
• Lockable front-panel keeps program material from being interrupted
• IR controllable with included, compact remote
• 1RU chassis with removable rack ears
• Detachable IEC-weighted AC inlet
• 100-220v switching power supply

Specification:

Playable formats, file systems

• CD: CD-DA (CD-TEXT), CD-ROM (ISO9660), CD-R, MP3-CD
• USB: FAT16 / FAT32
• SD/SDHC: FAT16 / FAT32

Supported WAV format

• Extension: WAV
• Bitrate: 16–bit
• Samplig Frequency: 44.1 kHz

Supported AAC format

• Extension: M4A
• Compression method: AAC-LA
• Bitrate: 32 to 320 kbps and VBR
• Sampling Frequency: 44.1 kHz

Supported MP3 format

• Extension: MP3
• Bitrate: 32 to 320 kbps and VBR
• Sampling Frequency: 44.1 kHz

• Number of channels: 2 (stereo), 1 (mono)
• Audio frequency characteristics: 20 Hz - 20 kHz (± 1.0dB)
• S/N ratio: More than 95 dB (A-Weighted)
• Total harmonic distortion: Less than 0.01%
• Dynamic Range: More than 85 dB
• Channel Separation: More than 80 dB

Bluetooth

• Version 3.0
• Output Class 2
• Range: Up to 100 feet (30m) with included antenna
• Supported Codec: SBC, MP3, AAC, aptX
• Supported Profiles: A2DP, AVDTP 1.0, AVCTP 1.3, AVRCP 1.0, SSP
• Device memory: Recall up to 8 pairings instantly

Input

• Aux in: TRS (3.5mm)
• Input impedance: Over 10 ka"¦
• Maximum input level: 1 Vrms
• Maximum output level: 3 Vrms

Output

• Analog RCA terminals
• Load impedance: Over 10 kâ"¦
• Output level: 2 Vrms at 10 ka"¦ load

Balanced XLR

• Output Level: +8 dBu
• Load impedance: > 10 ka

Tuner

• Tuner (Americas)
• FM receiving range: 87.5 MHz - 107.9 MHz
• AM receiving range: 522 kHz - 1710 kHz

Tuner (EU and Asia Pacific)

• FM receiving range: 87.5 MHz - 108.0 MHz
• AM receiving range: 522 kHz - 1611 kHz

Tuner (Japan)

• FM receiving range: 76.0 MHz - 90.0 MHz
• AM receiving range: 522 kHz - 1629 kH

• Useable Sensitivity (FM): 30 dBuV/m
• Useable Sensitivity (AM): 60 dBuV/m
• Tuner channel separation: 20 dB (0 kHz)
• Tuner S/N ratio (FM): > 40 dB
• S/N ratio (AM): > 30 dB
• THD+N (1 kHz): 3.0%

Operating Environment

• Operating temperature: 5-35 degrees Celcius (41-95 degrees Fahrenheit)
• Operating humidity: 25-85%, no condensation

General

• Power Supply
• USA & Canada: AC 120V, 60 Hz
• EU, UK, APAC: AC 230V, 50/60 Hz
• Japan: AC 100V, 50/60 Hz

• Power consumption: 30W
• Dimensions: 19" x 13.7" x 1.73" (483 x 347 x 44mm) with rack ears
• Weight: 7.94 lbs. / 3.6 kg

Others

• Max storage capacity: Up to 2TB
• Max file size: 2 GB
• Max number of files per folder: 999
• Max number of folders: 999
• Max folder heirarchies: 8
• Max file/folder name length: 255 characters

In the Box:

• DN-300Z
• Power cable

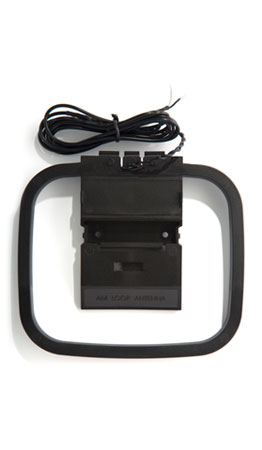

• AM loop antenna
• FM coaxial antenna
• Extended range Bluetooth antenna

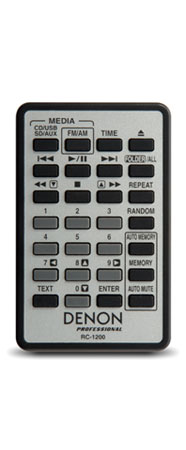

• Remote Control (RC1200)
• User Guide
• Safety & Warranty Manual
