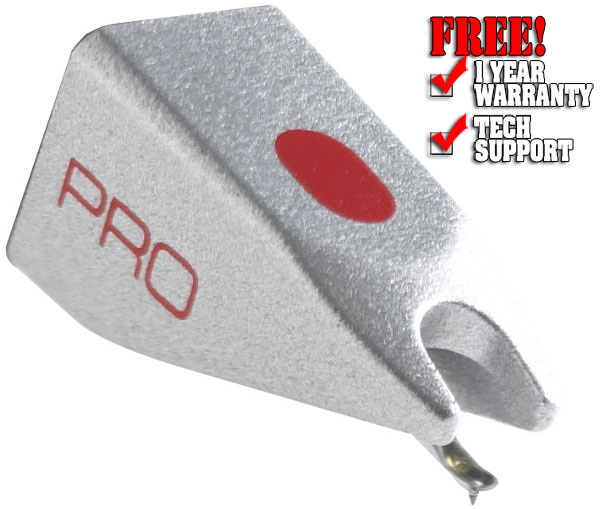

Ortofon Concorde Pro Stylus

Description

General purpose model for scratch and back-cueing Great performance and durability as to basic scratch and back-cueing is what the Pro is known for. It has a good quality spherical stylus, a rock-solid cantilever, and serves general purposes well. The Pro is the logical alternative to the more expensive expert carts. It offers both reasonable output and high sound quality which is, in fact, all there is needed to entertain an audience. The Pro Series of cartridges provides a great balance of sound quality with tracking ability, for virtually any style of music.

Features:

• Output voltage at 1000Hz, 5cm/sec.   5 mV
• Channel balance at 1kHz   1,5 dB
• Channel separation at 1kHz   20 dB
• Channel separation at 15 kHz   15 dB
• Frequency range at -3dB   20-20.000 Hz
• Frequency response   20-20.000 Hz 3dB/-2dB
• Tracking ability at 315 Hz at recommmende tracking force   70 μm
• Compliance, dynamic lateral   7 μm/m N
• Stylus type   Spherical
• Stylus tip radius   R 18 μm
• Tracking force range   3,0-5,0 g (30-50 mN)
• Tracking force recommended   4,0 g (40 mN)
• Tracking angle   20°
• Internal impedance, DC resistance   750 Ohm
• Internal inductance   450 mH
• Recommended load resistance   47 kOhm
• Recommended load capacitance   200-600 pF
• Compatible with cartridges   Pro
