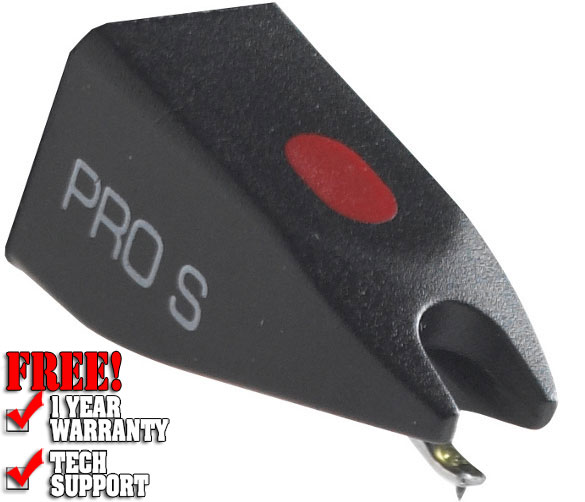

Concorde Pro S Stylus

Description

Entry-level cartridge for all-purpose use. New DJ? This entry-level cartridge is perfect for newcomers on the DJ scene who want to start off with decent, but not too expensive equipment. The Pro S has a spherical diamond stylus which minimizes scratching and a solid cantilever which can survive hectic activity at the turntable. No matter what the application, the Pro S provides remarkable versatility for virtually any setting. The sound quality is absolutely not to worry about. The Pro S is a consistent performer and a fine all-arounder!

Features:

• Output voltage at 1000Hz, 5cm/sec.:5 mV
• Channel balance at 1kHz:2 dB
• Channel separation at 1kHz:20 dB
• Channel separation at 15 kHz:15 dB
• Frequency range at -3dB:20-20.000 Hz
• Frequency response:20-18.000 Hz +/- 2 dB
• Tracking ability at 315 Hz at recommmende tracking force:70 μm
• Compliance, dynamic lateral:7 μm/m N
• Stylus type:Spherical
• Stylus tip radius:R 26 μm
• Tracking force range:3,0-5,0 g (30-50 mN)
• Tracking force recommended:4,0 g (40 mN)
• Tracking angle:20°
• Internal impedance, DC resistance:750 Ohm
• Internal inductance:450 mH
• Recommended load resistance:47 kOhm
• Recommended load capacitance:200-600 pF
• Compatible with cartridges:Pro S
