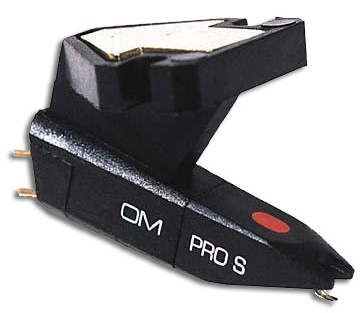

OM Pro S

Description

The Pro-S retains the overall sonic properties of the Pro Silver, but provides a wider stylus for low wear as well as durability under demanding conditions. No matter what the application, the Pro-S provides remarkable versatility for virtually any setting.

Features:

• Output voltage at 1000 Hz, 5cm/sec. 5 mV

• Channel balance at 1 kHz 2 dB

• Channel separation at 1 kHz 20 dB

• Channel separation at 15 kHz 15 dB

• Frequency range at - 3dB 20-20.000 Hz

• Frequency response 20-18.000 Hz +3/-2dB

• FIM distortion at recommended tracking force, DIN 45.542 < 1%

• Tracking ability at 315Hz at recommended tracking force 70 μm

• Compliance, dynamic, lateral 7 μm/mN

• Stylus type Spherical

• Stylus tip radius R 18 μm

• Equivalent stylus tip mass 0.5 mg

• Tracking force range 3.0-5.0 g (30-50 mN)

• Tracking force, recommended 4.0 g (40 mN)

• Tracking angle 20°

• Internal impedance, DC resistance 750 Ohm

• Internal inductance 450 mH

• Recommended load resistance 47 kOhm

• Recommended load capacitance 200-600 pF

• Cartridge color, body/stylus Black/Black

• Cartridge weight 18.5 g
