Home › DJ Cartridges › Audio-Technica DJ Cartridge › Audio-Technica AT-XP3
Regular Price $99.99
Our Price $59.99Regular Price $99.99
Full Protection Only $24.99Regular Price $99.99
Our Price $59.99Regular Price $99.99

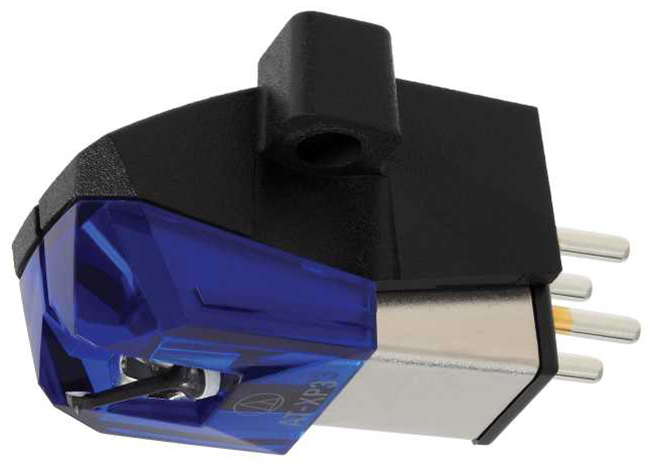

Full Protection Only $24.99The AT-XP3 cartridge is specially designed for DJs. It features a highly-rigid polyphenylene sulfide (PPS)/glass fiber body, has a tracking force of 2 to 4 grams, and offers a powerful output level of 5.5 mV. Its 0.6 mil conical bonded stylus tracks the center of the record groove for reliable performance and excellent fidelity. And the cartridge design provides maximum visibility of the stylus tip. The AT-XP3 cartridge is compatible with any XP or VM95 Series replacement stylus, offering a wide choice of options for every budget and application
Key Features:
Frequency Response: |
20-18,000 Hz |
Channel Separation: |
20 dB (1 kHz) Vertical |
Tracking Force: |
2.0-4.0 g (3.0 g standard) |
Stylus Construction: |
Bonded round shank |
Recommended Load Impedance: |
47,000 ohms |
Output: |
5.5 mV (1 kHz, 5 cm/sec.) |
Channel Balance: |
2.0 dB (1 kHz) |

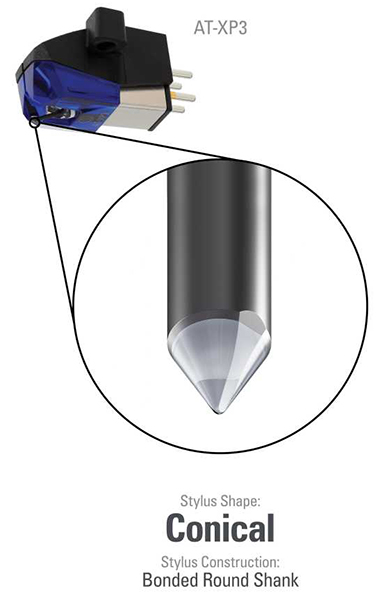

Stylus Shape: |
0.6 mil conical |
Cantilever: |
Carbon fiber-reinforced ABS |
Mount: |
Half-inch |
Replacement Stylus: |
ATN-XP3 |
Coil impedance: |
6.7 k ohms (1 kHz) |
Recommended load capacitance: |
100 to 200 pF |
Vertical tracking angle: |
20° |
Dimensions: |
17.2 mm (0.68") H × 17.8 mm (0.67") W × 28.3 mm (1.20") D |
Weight: |
6.2 g (0.22 oz) |
