SYSTEM REQUIREMENTS

• Mac OS X 10.8, 10.9 or 10.10 (latest update), Intel Core i5, 4 GB RAM
• Windows 7 or 8 (latest Service Pack, 32/64 Bit), 2.0 GHz Intel Core i5 or equal AMD processor, 4 GB RAM

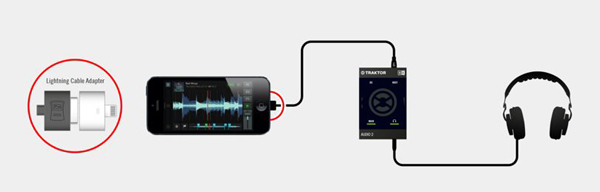

TRAKTOR AUDIO 2 MK2 IOS SYSTEM REQUIREMENTS

• iPad version: iOS 7 up to iOS 7.1.2, iPad 2 or later, or iPad mini. 500 MB free storage/disk space recommended.
• iPhone version: iOS 7 up to iOS 7.1.2, iPhone 4s / iPod 5th generation or later. 500 MB free storage/disk recommended.

POWER SUPPLY

Power Supply Via USB 2.0 interface, 5V 500mA bus power from a computer – no external PSU is required. Low-power operation possible from iOS devices. Full operation with iOS devices is achieved with use of an optional power supply (this increases output volumes and also charges the battery of the iOS device).

Features:

• 2-CHANNEL DJ AUDIO INTERFACE
• Plug-and-play with TRAKTOR PRO and TRAKTOR DJ
• Ultra-compact build – punchy, premium sound
• Pre-listen to the next track for flawless mixing

Specifications:

Audio Converters (Inputs A/D)

• Channels (A/D, D/A):0, 4
• Sample Rates:44.1, 48 kHz
• Bit Resolution:24-bit

Line Outputs

• Maximum Output Level:+11.7 dBu
• Dynamic Range (A weighted):103 dB
• THD+N (Max. Level):0.004 %
• Frequency Response, +/-1.4 dB:20 Hz - 20 kHz
• Cross Talk @ 1 kHz to next channel:-105 dB

Headphone Output

• Load Impedance:28 Ohms - 600 Ohms
• Maximum Output Level:+5 dBu @ 32 Ohms
• Dynamic Range (A weighted):102 dB
• THD+N (Max. Level, high Imp, 100 Ohms):0.004 %
• Frequency Response, +/-1.4 dB:20 Hz - 20 kHz
