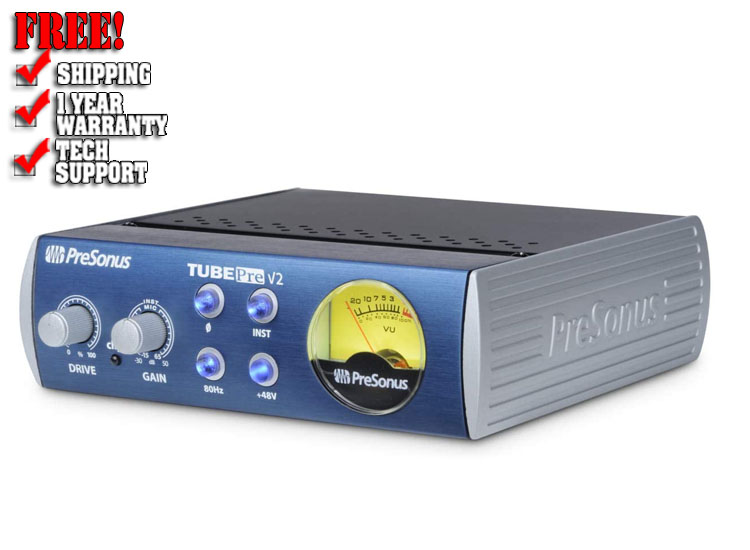

Presonus TubePre v2 Tube Preamplifier DI Box

Description

The masters at PreSonus have been designing preamps for a long time, and they always focus on audio quality first and foremost. Now they've upgraded on their most popular single-channel preamp, the TubePre v2 is focused on improving an already high-quality sound. Like the original TubePre, the new version is a fully professional tube preamp, with a dual-servo (no capacitors) gain stage that lets you boost the program signal to smoking hot levels without significantly increasing the background noise. Discrete components and high-voltage operation offer dynamic range and detail not found in other single-channel tube preamps in its class.

The TubePre v2 provides an even wider palette of sound options, and a much more focused tube saturation than the original TubePre. It has been upgraded to employ PreSonus' popular XMAX Class A solid-state preamp, which is followed in the signal path by a 12AX7 vacuum-tube stage. Twist the TubePre v2 Drive saturation control to add the "color" that only a hand-selected 12AX7 vacuum tube can deliver - from gentle warmth to total fuzz.

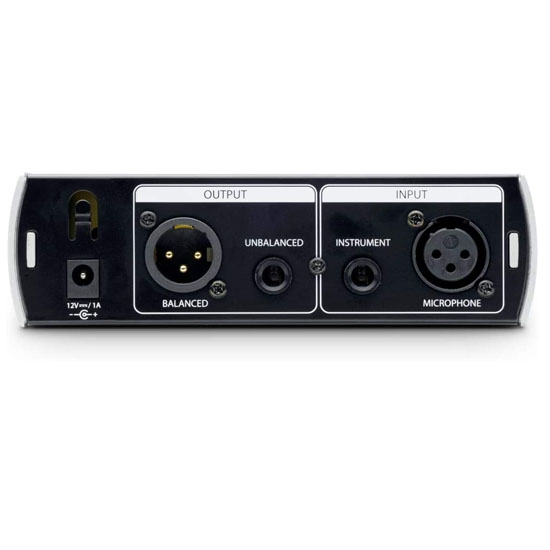

Housed in a rugged case, the TubePre v2 rear panel sports separate unbalanced 1/4" instrument and balanced XLR mic inputs and unbalanced 1/4" and balanced XLR line outputs. Plenty of professional extras including a high-pass filter, phantom power for condenser mics, polarity reverse switch and a backlit VU meter.

The TubePre v2 is more than a mic preamp, though. Thanks to its separate instrument and mic inputs, it also serves as a dynamite direct box (DI) for guitars and basses. And it's small enough to carry almost anywhere, although you also can screw-mount it to a standard rack tray.

Features

• XMAX Class A preamp input stage
• 12AX7 Dual-servo vacuum tube output stage
• Input Gain control
• 48V Phantom power
• 80 Hz High-pass filter
• -20 dB Pad
• Instrument input select
• Polarity-reverse switch
• Backlit VU meter
• Clip LED
• 1 Unbalanced ¼" instrument input
• 1 Balanced XLR mic input
• 1 Unbalanced ¼" line output
• 1 Balanced XLR line output
• Compact 1/3U rack-mount chassis
• External 12 VDC, 1A power supply

Specifications:

• Mic Input:
• Connector Type: XLR, female, balanced
• EIN: -131 dB, 20 kHz BW, max gain, Rs=40Î, A-wtd -128 dB, 20 kHz BW, max gain, Rs=40Î, unwtd
• Frequency Response: 20Hz - 20kHz, -0.3 dB, +4 dBu, unity gain 5Hz - 120kHz, -3dB, +4dBu, unity gain
• THD+N: 0.01%, -10dBu, 1kHz, unity gain, 20 kHz BW, unwtd
• Dynamic Range: 115dB, 1kHz, unity gain, 20 kHz BW, A-wtd 107 dB, 1kHz, unity gain, 20kHz BW, unwtd
• Input Impedance: 1.3 kÎ
• Phantom Power: +48 VDC, 10 mA
• Instrument Input:
• Connector Type: 1/4" TS, female, unbalanced
• Input Impedance: 1 MÎ

• Analog Output:
• Connector Types: XLR, male, balanced 1/4" TS, female, unbalanced
• Maximum Output: +20 dBu
• Output Impedance: 51Î
• Tube Stage:
• Type: 12AX7
• Power:
• Type: +12 VDC, 1A, center pin positive
• PSU Barrel Dimensions: .5 mm O.D., 2.1 mm I.D., 9.5 mm length
