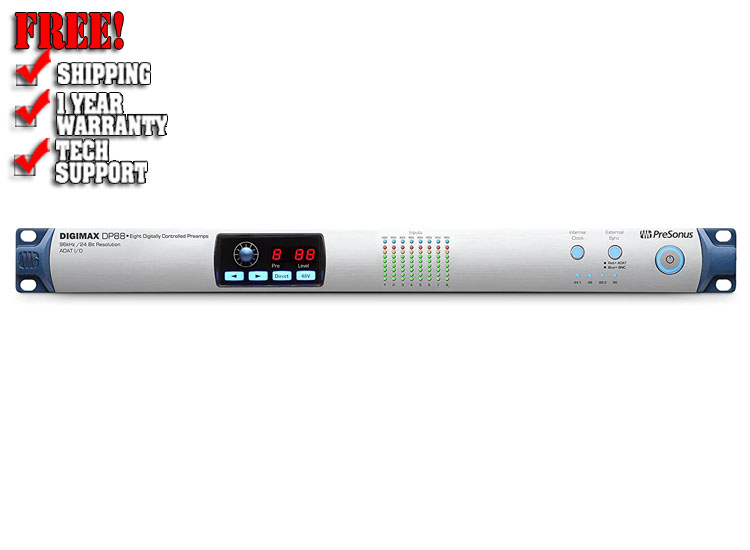

PreSonus DigiMax DP88 8-channel A/D/A Converter with Remote Preamps

Description

The DigiMax DP88 8-Channel A/D/A Converter with Remote Preamps from PreSonus PreSonus is the latest innovation in the DigiMax line and offers digitally controlled analog preamps and unmatched digital conversion up to 96 kHz. It can be used to provide connectivity, flexibility, and professional sound quality that make it a suitable fit for any studio environment.

The DigiMax DP88 features Burr-Brown converters that deliver 118 dB of dynamic range and a clock that delivers sub-50 picosecond jitter to capture complex musical harmonics smoothly and naturally. Eight digitally controlled analog XMAX preamps provide high headroom, low noise, wide dynamic range and extended frequency response.

In addition, the DigiMax DP88 is equipped with MIDI I/O for easy remote control from anywhere using simple MIDI CC messages to control level, phantom power, and direct ADC input. It fits into any DAW environment and connects to your MIDI interface to enable it as a MIDI device. Start remote controlling your preamps and recalling settings with your audio sessions.

Some other features include access to the preamps using XLR or DB25 connections. There are eight-direct analog-to-digital line-level inputs on DB25 connectors and they can be accessed per channel with a front panel button and allows you to keep all of your gear connected at the same time. Eight DAC outputs are provided via DB25 and eight channels of ADAT/dual SMUX optical I/O are available with up to a 96 kHz sample rate.

Finally, the DigiMax DP88 provides Class A microphone preamps, Burr-Brown converters with 118 dB of dynamic range, a boast-worthy digital clock with sub-50 picosecond jitter, and flexible connection options to make it a nice fit in any studio environment.

A Smooth Trip from Analog to Digital

The DigiMax DP88 is equipped with audiophile-grade, Burr-Brown processors to deliver top-quality digital conversion up to 96 kHz

Easy MIDI Control

The DigiMax DP88 is equipped with MIDI I/O for easy remote control from anywhere

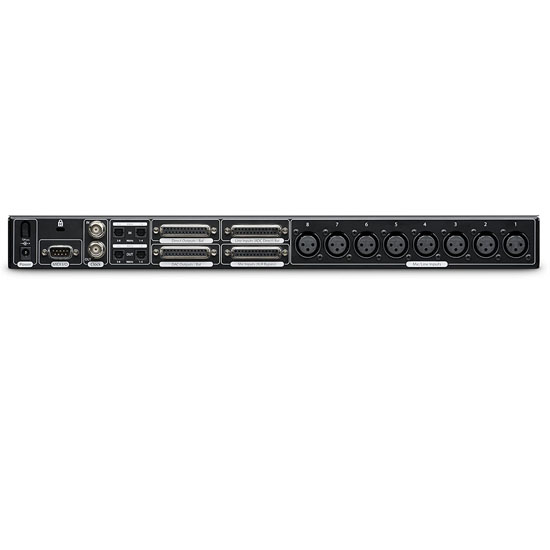

Flexible I/O Makes Setup a Snap

Flexible rear-panel I/O makes it easy to incorporate the DigiMax DP88 into any studio environment. Access the preamps using XLR or DB25 connections. Eight direct, analog-to-digital, line-level inputs are available on DB25 and can be accessed per channel with a front-panel button, allowing you to keep all of your gear connected at the same time

DAC Outputs

Eight balanced DAC outputs are provided via DB25 so you can expand your interface's outputs for monitor mixes or speaker switching. You also get eight balanced direct outputs on DB25 and eight channels of ADAT/dual SMUX optical I/O up to 96 kHz

Features

• Flawless analog signal path
• 118dB Burr-Brown digital conversion, 24-bit resolution
• Eight digitally remote-controlled XMAX microphone preamps
• Controlled from front panel or standard MIDI
• Controlled from UC Surface and Studio One 3.0 when connected to Studio 192
• Expands both the inputs and outputs of any interface with ADAT I/O
• Eight channels of ADAT optical I/O at up to 96kHz (via dual SMUX)
• Individual 48V phantom power with LED indicators
• 8 x 8-LED input metering
• Eight balanced direct A/D line-level inputs (DB-25)
• Eight balanced DAC outputs (DB-25) to expand your interface
• Eight balanced direct outputs (DB-25)
• Eight XLR Bypass Mic Inputs (DB-25) BNC Wordclock I/O MIDI I/O
• Solid metal chassis
