Overview

Gemsound XPS-1200

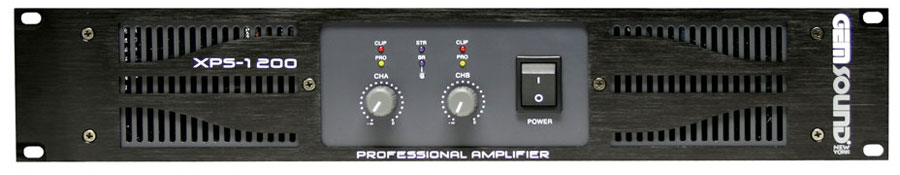

• Front panel features:
  • Power Switch
  • CHA, CHB Gain controls
  • Clip LED (Red)
  • Protect LED (Yellow)
  • Stereo LED (Blue)
  • Bridge LED (Blue)

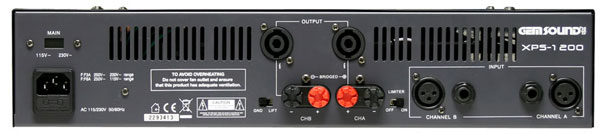

• Rear panel features:
• AC voltage selector switch
• Main power socket
• Ground/Lift switch
• Speaker on output jacks
• Binding post outputs
• Auto-limiter selectors
• XLR input jacks
• 1/4" input jacks
• Specifications:
• Output Power:
       -2 x 100W at 8 ohms stereo
       -2 x 150W at 4 ohms stereo
       -8 x 200W at 8 ohms bridged

• Frequency response: 20Hz-20KHz -1dB
• Minimum Input Sensitivity: 780 mV
• Input Impedance: 20K ohm balanced, 10K ohm Unbalanced
• Damping factor: >200
• Slew Rate: 14V / S
• S/N Rate: >80dB
• Channel Separation: >50dB (L/R,R/L)
• Protection: DC, AC, Short Circuit, Thermal Limiter
• LED Indicators: Stereo (Blue), Bridge (Blue), Clip (Red), Protect (Yellow)
• Input connectors: XLR, 1/4"
• Output Connectors: Speaker On, Binding Post
• Main Power: AC 115V/230V 50 Hz/60Hz
• Dimensions (WxDxH) 482mm x 273 x 88 mm, 19" x 10.75" x 3.5"
• Weight: 7.25 Kg, 16lbs.
