Description

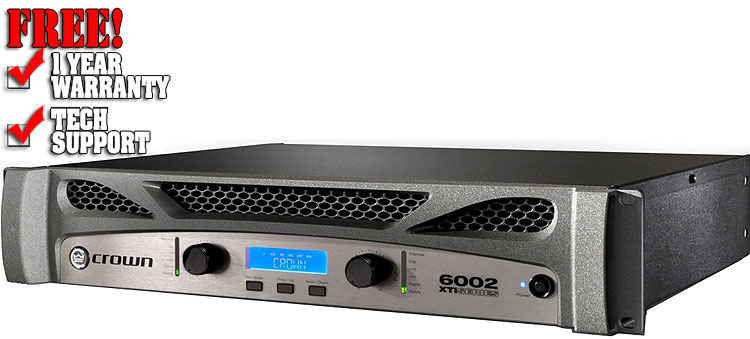

Crown XTi 6002

• Wattage:
  • 2Ω Stereo (per ch.) 3000W
  • 4Ω Stereo (per ch.) 2100W
  • 8Ω Stereo (per ch.) 1200W
  • 8Ω Bridge-Mono 4200W
  • 4Ω Bridge-Mono 6000W
• Peakx Plus™ Limiters provide the ultimate in system performance and protection by allowing full control over threshold, attack, and release
• Enhanced Subharmonic Synth section provides user control over frequency, gain and filter type for system-specific tuning
• 3 User-defined fan mode controls – normal, early and fullspeed – for matching fan performance to a specific application
• New system monitoring provides software visibility of AC line voltage and power supply temperature
• Integrated cast-aluminum handles for easy handling and enhanced durability
• Locking power cord clip provides a secure connection between the amplifier and power cord
• Updated HiQnet Band Manager™ and System Architect™ control software
• Increased number of presets to a total of 50; 49 of which are user definable
• Input EQ: 6 parametric filters per channel with adjustable Q, ±15 dB boost/cut. Also adjustable high and low shelving filters. This 8-filter EQ section can be bypassed.
• Crossover Filters: Highpass and Lowpass per channel. Butterworth 6/12/18/24 dB per octave. Linkwitz-Riley 24/48 dB per Octave. Also includes ± 15 dB bandpass gain and polarity control.
• Output EQ: 8 parametric filters per channel with adjustable Q, ±15 dB boost/cut. This 8-filter EQ section can be bypassed.
• Delay: For signal alignment of driver; 50 mS of total delay.
• SubHarmonic Synth: Takes the low-frequency content of the input signal and "synthesizes" a new signal that is the same as the input signal but one octave lower. The new synthesized signal is then mixed with the original signal to create the effect. New: Users now have control over frequency, gain, and filter type.
• Peakx™ Plus Limiter: User defeatable limiter that allows users to control Threshold, Attack, and Release times.
• Presets: 50 total presets, 49 of which are user-definable.
• Sensitivity (for full rated power at 4 ohms): 1.4 Vrms
• Frequency Response (at 1 watt, 20 Hz - 20 kHz): +0 dB, –1 dB
• Signal-to-Noise Ratio (below rated 1kHz power at 8 ohms):100 dB (A weighted)
  Total Harmonic Distortion (THD): < 0.5%
• Damping Factor 20 Hz to 1 kHz: > 500
• Crosstalk (below rated power): 20 kHz - 1 kHz: > 70 db
• Input Impedance (nominal): 20k ohms balanced, 10k ohms unbalanced
• Maximum Input Signal: +22 dBu typical
• AC Line Voltage and Frequency Configurations: 100 VAC, 120 VAC, 220-240 VAC 50/60 Hz
• AC Line Current : 6.8A; no more than 38W at idle
• Operating Temperature: 0°C to 40°C at 95% relative humidity (non-condensing)
