Description

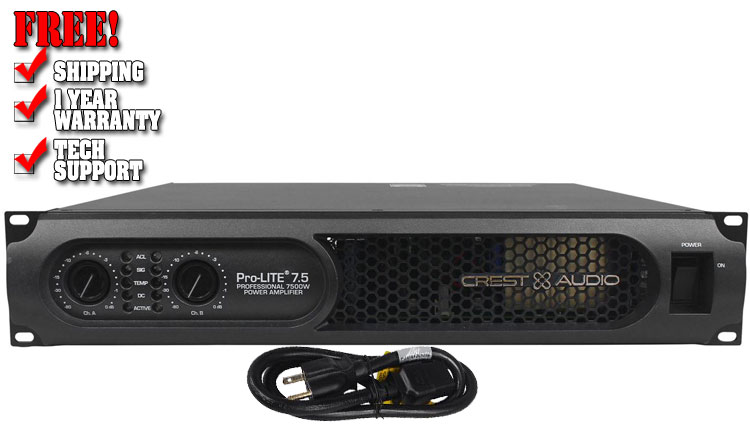

Crest-Audio Pro-LITE 7.5

Designed for years of reliable, flawless operation under rigorous use, the groundbreaking Pro-LITE™ series utilizes an advanced design that dramatically reduces weight, while increasing output power, reliability and thermal efficiency. Pro-LITE™ Series amplifiers are also designed with a resonant switch-mode power supply and a highspeed class D topology, that yields the highest audio resolution and efficiency available. This revolutionary amplifier offers the sonic superiority and unsurpassed reliability for which Crest® is famous, in an extremely efficient and lightweight design. Advanced technology and extensive protection circuitry allow operation with greater efficiency into difficult loads and power conditions. In other words, you get an amazingly powerful and efficient amplifier that won't break your budget or your back! The ACL™ (Automatic Clip Limiting) circuitry ensures trouble-free operation into loads as low as 2 ohms. ACL™ protects drivers and ensures that sonic integrity is maintained, even in extreme overload conditions. The Pro-LITE's high-efficiency design allows the amplifier to operate at very low temperatures, and does not require massive heat sinks to cool. For your safety, read the important precautions section, as well as input, output and power connection instructions.

• Rated Watts 2ch x 2 ohms: 4800 watts 20ms repetitive burst / 3790 watts 1% THD both channels driven @ 1kHz.
• Rated Watts 2ch x 4 ohms: 2810 watts 20ms repetitive burst / 2450 watts 1% THD / 2030 watts 0.15% THD, both channels driven @ 1kHz.
• Rated Watts 2ch x 8 ohms: 1550 watts 20ms repetitive burst / 1425 watts 1% THD / 1200 watts 0.15% THD, both channels driven @ 1kHz.
• Minimum Load Impedance: 2 ohms
• Maximum RMS Voltage Swing: 124 volts
• Frequency Response: 20Hz - 25kHz; +0dB, -3dB
• 20Hz - 20kHz 2ch x 2 ohms: <0.5% @ 3390 watts 20Hz to 4kHz, decreasing to 3100 watts @ 20kHz, both channels driven.
• 20Hz - 20kHz 2ch x 4 ohms: <0.15% @ 1850 watts 20Hz to 20kHz, both channels driven.
• 20Hz - 20kHz 2ch x 8 ohms: <0.15% @ 1170 watts 20Hz to 20kHz, both channels driven.
• Input CMRR: >- 75dB @ 1 kHz
• Voltage Gain: x 40 (+32dB)
• Crossover: 100Hz switchable 2nd order high pass and 3rd low pass per channel.
• Crosstalk: > -60dB @ 1kHz @ 1000 watts power @ 8 ohms.
• Hum and Noise: >-100dB, "A" weighted referenced to rated power @ 4 ohms.
• Slew Rate: >12V/µs
• Damping Factor (8 ohms): >200:1 @ 20Hz - 1kHz @ 8 ohms
• Phase Response: +15 to -85 degrees from 20Hz to 20kHz
• Input Sensitivity: 2.25 volts +/- 3% for 1kHz 4 ohm rated power, 2.2 volts +/- 3% for 1kHz 2 ohm rated power
• Input Impedance: 20 kilohms, balanced and 10 kilohms unbalanced.
• Current Draw @ 1/8 in VA (watts): 2210 (1440) @ 2 ohms, 1550 (950) @ 4 ohms, 985 (560) @ 8 ohms
• Current Draw @ 1/3 in VA (watts): 4260 (3150) @ 2 ohm, 3120 (2160) @ 4 ohms, 1890 (1200) @ 8 ohms
• Idle Consumption: 250VA, 120 watts.
• Cooling: 3 temperature dependent variable speed fans.
• Controls: 2 front panel attenuators, crossover select switch for HPF, Normal and LPF
• Indicator LEDs: Five LED indicators per channel: Active, Signal, DDT, Temperature and DC
• Protection: Thermal, DC, subsonic, incorrect loads, under and over voltage

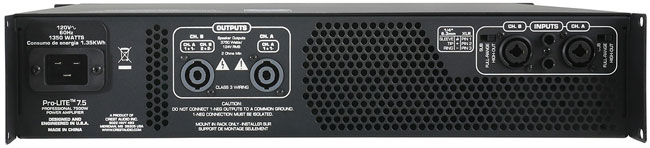

• Connectors: Inputs: Dual combination 1/4" XLR, Outputs: Dual 1/4" thru, one 2-pin & one 4 pin twist-lock connector
• Construction: 0.062" thick aluminum
• Dimensions: 3.5"x19"x 17" behind front panel + 0.6" for handle
• Net Weight: 6.61kg (14.6lbs.*)
• Gross Weight: 8.34kg (18.4lbs.)
