Swarm 4FX Fog Pack
Overview

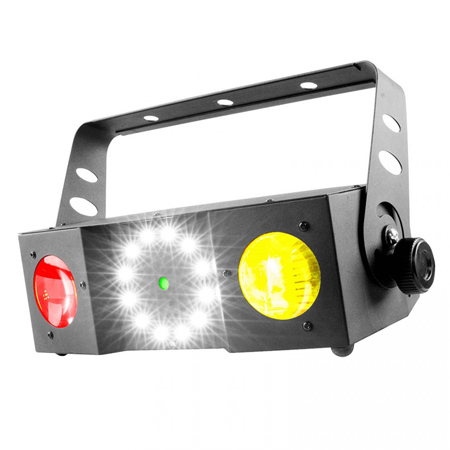

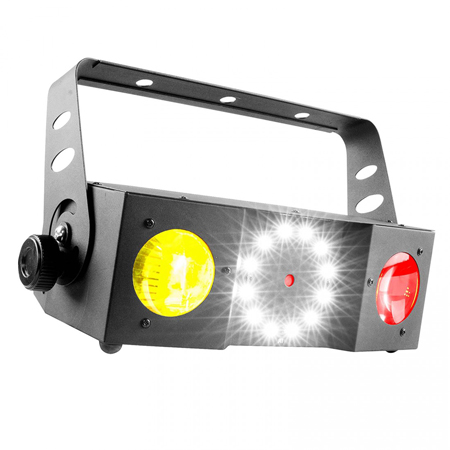

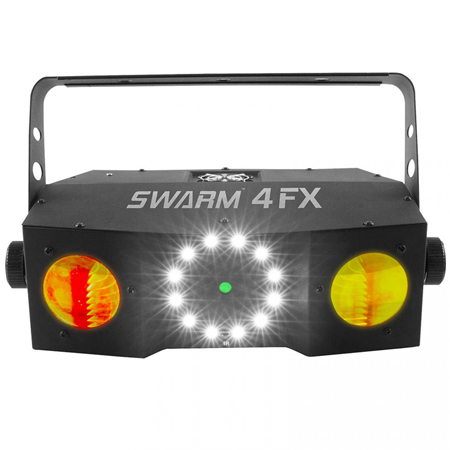

Chauvet DJ Swarm 4 FX
Swarm 4 FX combines three dynamic lighting effects in one rugged and compact housing. A single fixture includes quad-color (RGBA) dual moonflowers, a red/green laser and a white strobe. The dual moonflowers spin enough colorful beams to fill an entire dance floor with energy and excitement. Added impact is provided by the thousands of razor sharp red and green beams produced by the laser. The bright output of the strobe ring, which features built-in motion effects, adds to the fun. Control options include sound activation, master/slave, DMX modes or the IRC-6 remote.
The perfect mixture of 3 LED lighting effects in one compact housing.
Swarm 4 FX Features:
- The perfect mixture of 3 LED lighting effects in one compact housing.
- Ultra-bright, quad-color moonflower, red/green laser and white strobe effect.

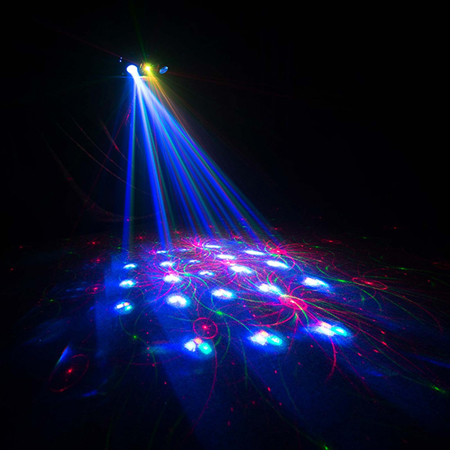

- Dual LED moonflowers fill the dancefloor with multi-colored spinning beams.

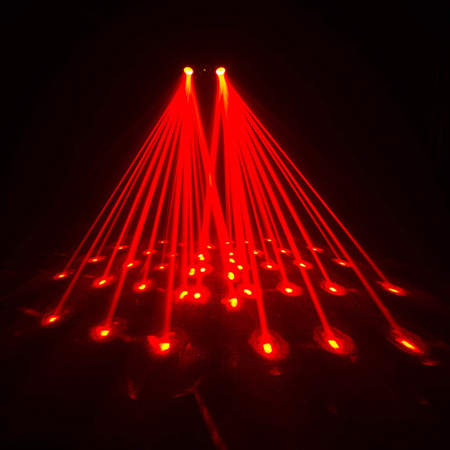

- Red and green laser produces thousands of razor sharp beams.
- Create energy with included ultra-bright LED strobe ring with built-in motion effects.
- Convenient control of color and program output from the display, IRC-6 remote, and DMX.
- Flexible control using automated and sound-activated programs, Master/Slave or DMX modes.
- Save time running cables and extension cords by power linking multiple units.
- Fits best inside the CHS-40 VIP Gear Bag.

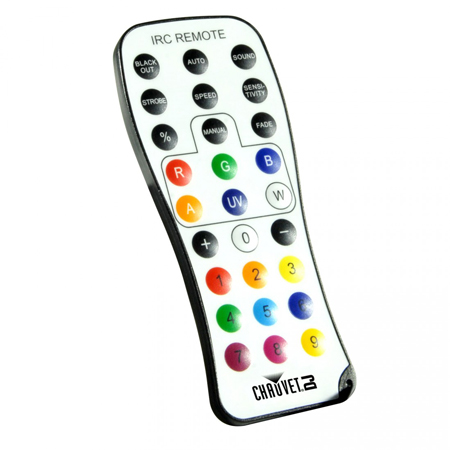

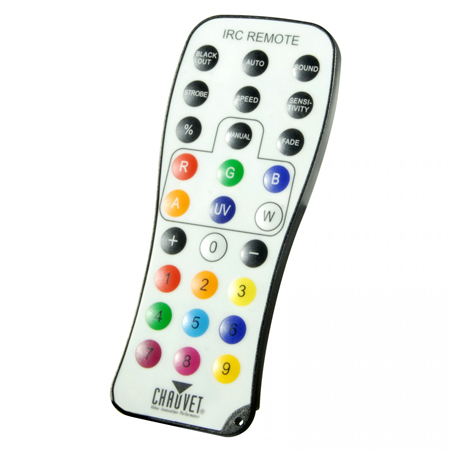

Chauvet DJ IRC-6 Infrared Remote Control
IRC-6 is an easy-to-use infrared remote control (IRC) for IRC compatible lighting fixtures. It provides instant access to pre-programmed scenes, color mixing options and on-the-fly speed adjustments. This compact and lightweight remote has an approximate range of 30 feet (9 m).
IRC-6 Features:
- Wireless remote control for all Chauvet Freedom series & IRC products.
- Allows you to wirelessly select color, intensity, strobe rate and more.
- Provides instant access to pre-programmed light shows.
- Manually set individual color percentages to achieve the exact color without a DMX controller.

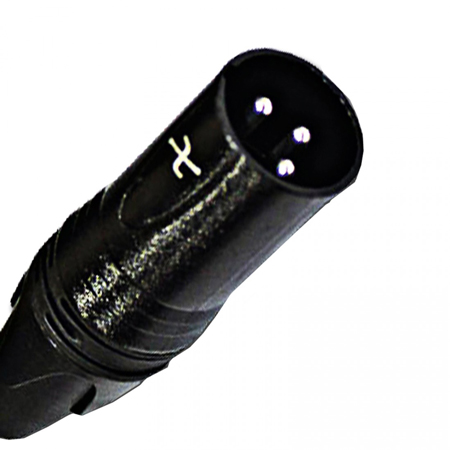

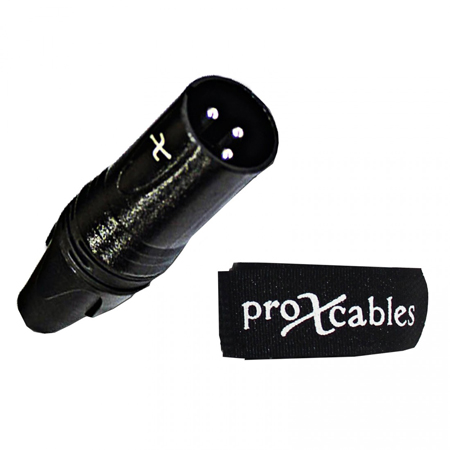

Xstatic DMX 3-Pin Terminator [XC-DMX3PTR]
Xstatic's DMX 3-pin DMX terminator Kit is a 110 Ohm DMX terminator.
It is recommended to use a Terminator at the end of any DMX run.
ProX Portable DJ Lighting Stand w/Square T-BAR, 9FT Height [T-LS03M-9FT]
The ProX T-LS03M-9FT Tree is a black, all metal design high quality 9ft Lighting Stand with tripod that features a single square T-bar and supports the hanging bolts included. This is also easy to transport and it can hold up to 50 lbs.
ProX T-LS03M-9FT Designed for hanging par cans and pin spots.
A lightweight and quick-to-set-up T-bar-style lighting stand with sturdy tripod base Full extension of 9' lets you raise your lights well over the heads of your audience.

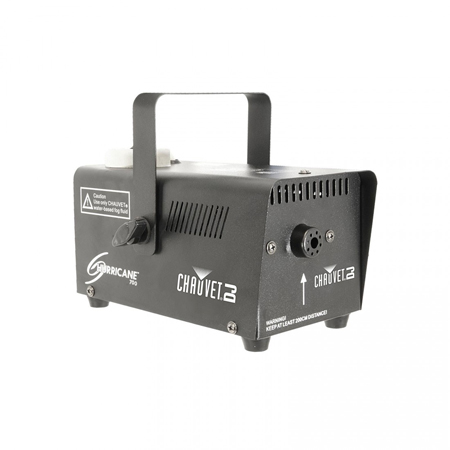

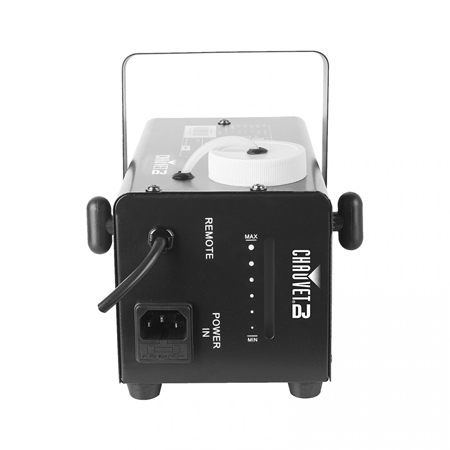

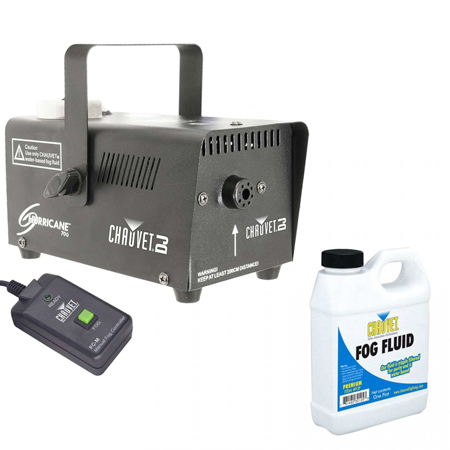

Chauvet DJ Hurricane 700 Fog Machine
The Hurricane Series Foggers provide the quality, performance and innovation for which Chauvet is known. All come with generous-capacity tanks and quick heat up of water-based fog to fill a venue within minutes.
Hurricane 700 Features:
- Compact, lightweight fog machine emits thick bursts of water-based fog to enhance any light show.
- Ready to use right out of the box by including a wired remote control and free pint of water-based fog fluid.
Specifications
Chauvet DJ Swarm 4 FX Specifications
- DMX Channels: 2 or 12

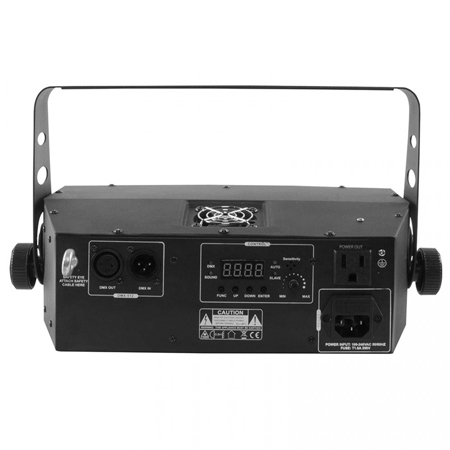

- DMX Connectors: 3- pin XLR
- Light Source (moonflower): 2 LEDs (quad-color RGBA) 13 W (4.4 A), 50,000 hours life expectancy
- Light Source (strobe): 12 LEDs (white) 1 W (300 mA), 50,000 hours life expectancy
- Light Source (laser): 532 nm/30 mW (green) laser diode, 650 nm/100 mW (red) laser diode
- Strobe Rate: 0 to 11 Hz
- Coverage Angle (moonflower): 54°
- Coverage Angle (strobe): 69°
- Power Linking: 11 units @ 120 V; 21 units @ 230 V
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power and Current: 47 W, 0.7 A @ 120 V, 60 Hz
- Power and Current: 46 W, 0.4 A @ 230 V, 50 Hz
- Weight: 5.4 lb (2.5 kg)
- Size: 11.4 x 14.2 x 4.2 in (290 x 360 x 107 mm)
- Optional Controllers: IRC-6
- Classified per EN/IEC 60825-1:2007
- Complies with FDA performance standards for laser products except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007
- Approvals: CE, FDA
Chauvet DJ IRC-6 Specifications
- Max Unobstructed Distance: 15 ft (4.6 m)
- Input Voltage: 3 VDC lithium battery (CR2025)
- Weight: 0.7 oz (20 g)
- Size: 3.9 x 1.8 x 0.3 in (100 x 47 x 7 mm)
- Approvals: CE
ProX T-LS03M-9FT Specifications:
- Maximun Load Capacity 50 lbs.
- Square T-Bar w/ 4 Hanging points
- Wide tripod base for maximum stabilty
- ALL METAL PIECES IT WILL LAST A LIFETIME
The only parts of the stand that are not metal are the knobs and rubber grips on the tripod base.
- Dimensions:
- 6.00"L X 6.00"D X 47.00"H
- Weight: 12.00 lbs
- Shipping Dimensions
- 6.00"L X 6.00"D X 47.00"H
- Weight: 13.00 lbs
Chauvet DJ Hurricane 700 Specifications
- Tank Capacity: 0.2 gal (0.6 L)
- Remote Length: 13 ft (4 m)
- Heat-up Time: 2.5 min
- Output: 1,500 cfm
- Fluid Consumption: 7.5 ml/min
- Input Voltage: 120 VAC, 60 Hz; 230 V, 50 Hz
- Power and Current: 471 W, 3.9 A @ 120 V, 60 Hz
- Weight: 4 lb (1.8 kg)
- Dimensions: 8.5 x 7.1 x 4.9 in (215 x 180 x 124 mm)
- Approvals: CE
What's in the Box
This Package Includes:
- (2) Chauvet DJ Swarm 4 FX

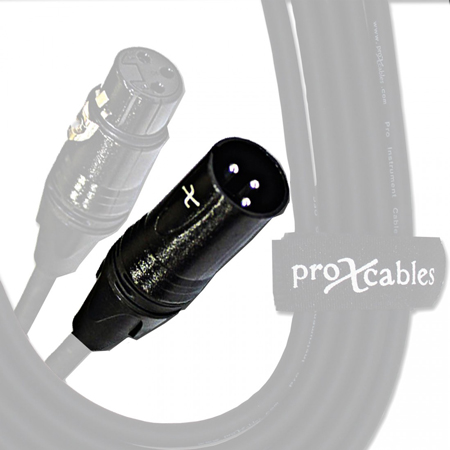

- (2) 10FT DMX Connecting Cables
- (2) Black 10FT AC Extension Cords
- (2) Clamps
- (1) Chauvet DJ IRC-6 Infrared Remote Control
- (2) Protective transport cases
- (1) DMX 3-Pin Terminator
- (1) Chauvet DJ Hurricane 700 Fog Machine
- (1) Portable Lighting Stand w/T-BAR, 9FT Height
Each Swarm 4 FX Box Includes:
- (1) Chauvet DJ Swarm 4 FX
- (1) Power cord
- (1) Warranty card
- (1) User manual
The IRC-6 Box Includes:
- (1) Chauvet IRC-6 Infrared Remote Control
- (1) QuickStart Guide
- (1) Warranty Card
The T-LS03M-9FT Box Includes:
- (1) ProX Portable Lighting Stand w/Square T-BAR, 9FT Height [T-LS03M-9FT]
The Chauvet DJ Hurricane 700 Box Includes:
- (1) Pint of Fog Fluid
- (1) Power Cord
- (1) Warranty Card
- (1) Quick Reference Guide
- (1) Permanently Wired Remote
