Eliminatrix R2.91 Video 36 Pack System
Description

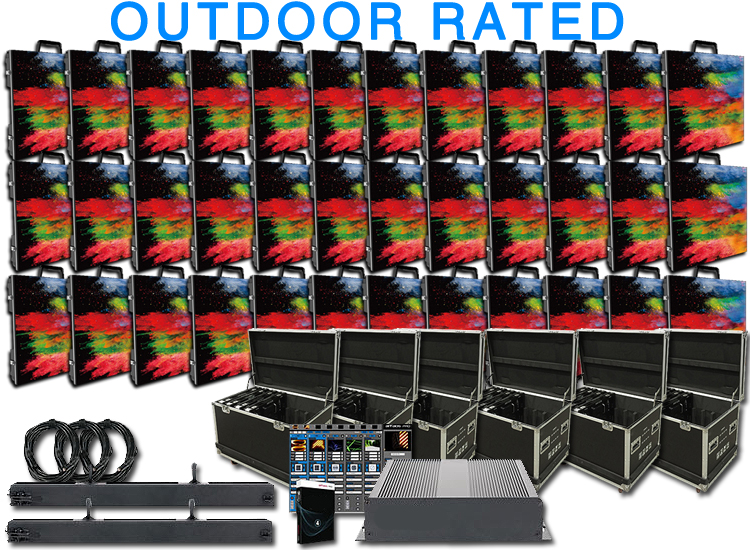

This package includes:36 x R2.91 video panels, 2x video panel hanging bars, 6x data cables, power cable, video processor, video control software, sending box, 46 x flight cases.
Affordable 6mm LED Video Wall for nightclubs, bars, bands, mobile entertainers, event productions and houses of worship.
Features:
- Outdoor Rated
- Pixel Pitch: 2.976
- Configuration: 3in1 (2121)
- Cabinet Pixels: 168*168/dots
- Pixel Density/m²: 112896/dots
- Cabinet Size(mm): 19.68" x 19.68" x 3.22"
- Cabinet Material: Die-cast Aluminum
- Cabinet Weight (kg): 8.4kg
- Color Depth (Bit): 14bit
- Refresh Rate (Hz): =1920
- Driving Mode/scan: 1/21
- Brightness (cd/m2): 1000cd/m²
- Viewing Angle(°) : H/160°; V/160°
- Input voltage(V): AC110v~220v ±10%
- Input Frequency(Hz): 50~60Hz
- Input Max.(W/m²): 600W/m²
- Input Avg.(W/m²): 180W/m²
- Storage/Working Temperature( °C): ?10 - 50 / 0 - 40
- Storage/Working Humidity( RH): 10%~90%
- Protection Grade: IP40/IP40
- Lifespan( hours): 100000
Hanging Bar
Single panel rigging bar or double panels rigging bar with up to 20 panels max vertical hang.
VIDEO PROCESSOR
Features:
- Control Mode: Synchronous Display with Control PC by DVI
- Frame Update Frequency: 50-60Hz
- Scan Mode: 1/12 Duty
- Refresh Rate: 1200Hz
- Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI
- Control Distance: Ethernet Cable < 100m or Fiber Optic > 120m
- Support VGA Mode: 1024 x 768, 1280 x 1024, 1600 x 1200, 1920 x 1280
- Brightness Correction: Pixel, Module, Cabinet
VIDEO CONTROL SOFTWARE
Features:
- Control video layers with just a few DMX dimmers or MIDI notes
- Work on a single DMX universe or MIDI channel
- Drag & Drop visuals directly on the main interface
- Organize your shows with up to 64 patches of 64 cells
- Control up to 3 parameters per cell via DMX or MIDI
- Optional fade time on trigger
