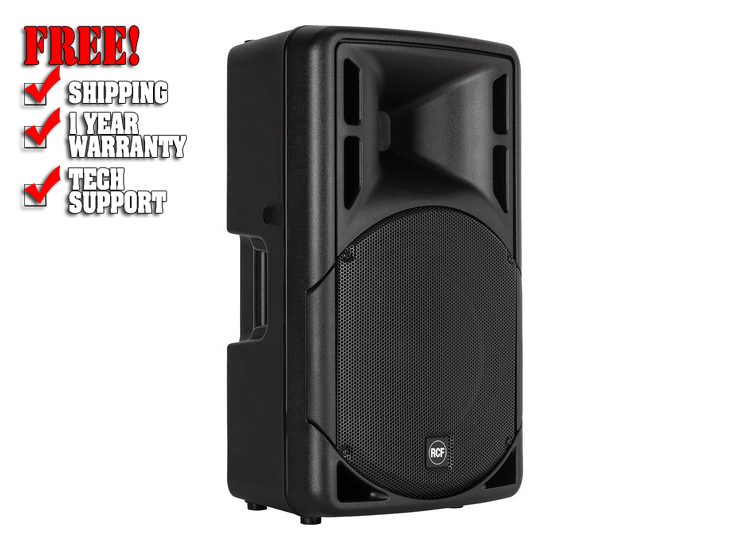

RCF ART 315-A MK4 - 15" 2-Way 800W Active Speaker

RCF ART 315-A MK4 - 15" 2-Way 800W Active Speaker

Regular Price $1299.99

Our Price $649.99

WARRANTY SPECIAL
TWO YEAR FULL WARRANTY. ONLY $20 A YEAR FOR FULL PIECE OF MIND. ENJOY YOUR EQUIPMENT WITHOUT WORRY. PLAY WITH IT AND IF ANYTHING IS WRONG, IT WILL BE FIXED. Details

Regular Price $99.99

Full Protection Only $40.00

Regular Price $1299.99

Our Price $649.99
WARRANTY SPECIAL
TWO YEAR FULL WARRANTY. ONLY $20 A YEAR FOR FULL PIECE OF MIND. ENJOY YOUR EQUIPMENT WITHOUT WORRY. PLAY WITH IT AND IF ANYTHING IS WRONG, IT WILL BE FIXED. Details

Regular Price $99.99

Full Protection Only $40.00

We'll beat any price!

RCF ART 315-A MK4 - 15" 2-Way 800W Active Speaker

Description

Part of the Art 3 Series MK4 line of speakers, the RCF ART 315-A MK4 is a lightweight (at 37.7 lb) and portable active speaker designed to deliver full-range sound with accurate high-frequencies, and controlled deep bass, for live sound reinforcement, distributed sound systems in clubs, corporate events, or mobile DJ setups.

The ART 315-A MK4 is equipped with an 800W peak, Class-D digital amplifier, which drives 600W into the 15" woofer, and 200W into the 1" mylar-dome compression driver. The speaker delivers a frequency response of 45 Hz to 20 kHz with a peak SPL output of 129 dB. The integrated DSP manages the loudspeaker processing, including crossover and EQ, soft limiter, and dynamic bass boost. Phase and amplitude are corrected using proprietary FiRPHASE technology conceived for delivering a natural and transparent sound, with a balanced stereo image.

Easy to operate, the ART 315-A MK4 comes with XLR and 1/4" balanced/unbalanced inputs for connecting a microphone, mixer, or audio device, and with a volume knob to set the level. Furthermore, the switchable Flat/Boost mode enables you to emphasize the bass response when playing at low volume, or keep it flat for all other applications.

The cabinet is molded with rugged polypropylene composite material (PP), and designed to dampen vibrations, even at maximum volume settings. It features top and side handles, which allow you to firmly hold the cabinet and move it easily. The ART 315-A MK4 can be mounted on a stand or a subwoofer pole, or positioned on its side to serve as a stage monitor wedge.

Key Features

  • ART 3 Series MK4 active speaker for live sound reinforcement/stage monitoring, distributed sound systems for clubs, music venues, and corporate events, or mobile DJ setups
  • 15" woofer delivers a deep and accurate reproduction of the mid-bass frequency range, and controlled deep bass
  • 1" mylar-dome compression driver offers open and natural midrange frequencies and precise high-frequency reproduction
  • Class-D, amplifier – 800W, 2-way peak power
  • Connect microphone, mixer, or audio device
  • Simple to operate plug'n'go design with double input (XLR or 1/4" jack) and one volume knob
  • 129 dB maximum SPL
  • 45 Hz to 20 kHz frequency response
  • Integrated DSP manages full loudspeaker processing, FiRPHASE filters, crossover and EQ, soft limiter, and dynamic bass boost
  • FiRPHASE proprietary and advanced FIR filtering technology delivers transparent sound, and balanced stereo image
  • Solid mechanical aluminum structure stabilizes the amplifier during transportation and facilitates fan-less heat dissipation
  • Cabinet is molded with polypropylene composite material (PP), and designed to dampen vibrations, even at maximum volume settings
  • Rugged construction with internal reinforcement prevents any deformation of the cabinet
  • Rear profile design of the cabinet allows speaker to be used as a monitor wedge
  • Ergonomically designed top and side handles allow to firmly hold the cabinet, and move it easily
  • Lightweight (at 37.7 lb) design for portability
  • Steel pole socket for mounting on a stand or on a subwoofer pole
  • M10 fittings for flown applications
  • 115-230V operation, user switchable

Specification

  • Frequency Response : 45 Hz to 20 kHz (-3 dB)
  • Maximum SPL : 129 dB
  • Coverage Angle :Horizontal: 90° Vertical: 60°
  • Compression Driver: 1", mylar-dome, 1.5" voice coil
  • Woofer : 15", 2.5" voice coil

Input/Output Section

  • Input Signal : Balanced/ unbalanced
  • Connectors : Inputs: XLR-F, and 1/4" female (balanced/unbalanced) Output: XLR-M (balanced)
  • Input Sensitivity :Line Input: -2 dBu to +4 dBu Mic Input: -32 dBu

Processor Section

  • Crossover Frequency : 1800 Hz
  • Protection : Thermal, RMS
  • Limiter : Soft limiter
  • Controls : Volume, boost, mic/line

Amplifier Specifications

  • Type : Class-D amplifier
  • Power :Total: 800 W peak / 400 W RMS High Frequencies: 200 W peak / 100 W RMS Low Frequencies: 600 W peak / 300 W RMS
  • Cooling : Convection
  • Connections : VDE AC socket

Cabinet

  • Material : Polypropylene composite (PP)
  • Hardware : 4 x M10 flying points
  • Handles :2 x side 1 x top
  • Pole Mount/Cap : Yes
  • Grille : Steel
  • Color : Black

Power Supply

  • Power : 115-230 VAC, 50/60 Hz, user-switchable
  • Fuse :115 V: T6.3 A L, 250 V 230 V: 3.15 A L, 250 V

Physical Specifications

  • Dimensions (H x W x D) : 26.77 x 15.94 x 13.58" / 680.00 x 405.00 x 345.00 mm
  • Weight : 37.7 lb / 17.1 kg

Packaging Info

  • Package Weight : 35.0 lb
  • Box Dimensions (LxWxH) : 22.0 x 14.5 x 14.5"
