| MRX525 |
 |
|
 |
|
CURRENTLY OUT OF STOCK |
|

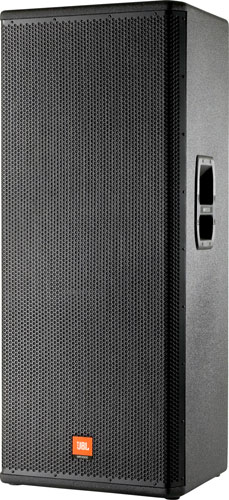

The MRX525 is an excellent choice when the application calls for high performance and simplicity. A pair of MRX525s and a single, high-power amplifier is a complete sound system capable of reinforcing bass and kick drum or playing high-level music in clubs and other venues. The MRX525 is comprised of two 15" 265H Differential Drive® woofers with combined power handling of 3200 watts. For the high frequencies, 2408H 1.5" annular polymer diaphragm, neodymium compression driver is mounted to a 70° x 70° horn. The 70° coverage angle of the MRX525 is wide enough to provide coverage of an audience when used one-per-side yet narrow enough to allow splaying of multiple enclosures without excessive coverage overlap. The enclosure is constructed of quality plywood and coated in JBL’s rugged DuraFlex™ finish. The attractive CNC-machined, 16-gauge steel grille wraps around the sides of the enclosure. The grilles are internally lined with an acoustically transparent screen to provide additional driver protection and give a very professional appearance.
- Lightweight and high-power
- Dual 15" Differential Drive® woofers for high-power capacity and extended LF performance
- 1.5" annular polymer diaphragm compression driver
- 70° x 70° coverage
- Heavy Duty 16 gauge protective screen backed steel grill
- Tough DuraFlex™ enclosure finish
Specifications:
- Frequency Range: 40 Hz - 20 kHz
- Frequency Response: 57 Hz - 20 kHz
- Sensitivity: 100 dB SPL
- Nominal Impedance: 4 ohms
- Power Capacity: 3200 W
- Rated Maximum SPL: 129 dB SPL Continuous (135 dB SPL Peak)
- Coverage Pattern: 70º x 70º nominal
- Size (H x W x D): 48.75" x 21" x 18"
- Weight: 84 lbs.
- High Frequency Driver: 1 x JBL 2408H 1.5" annular polymer diaphragm, neodymium compression driver
- Low Frequency Driver: 2 x JBL 265H 15" Differential Drive® woofer
|
