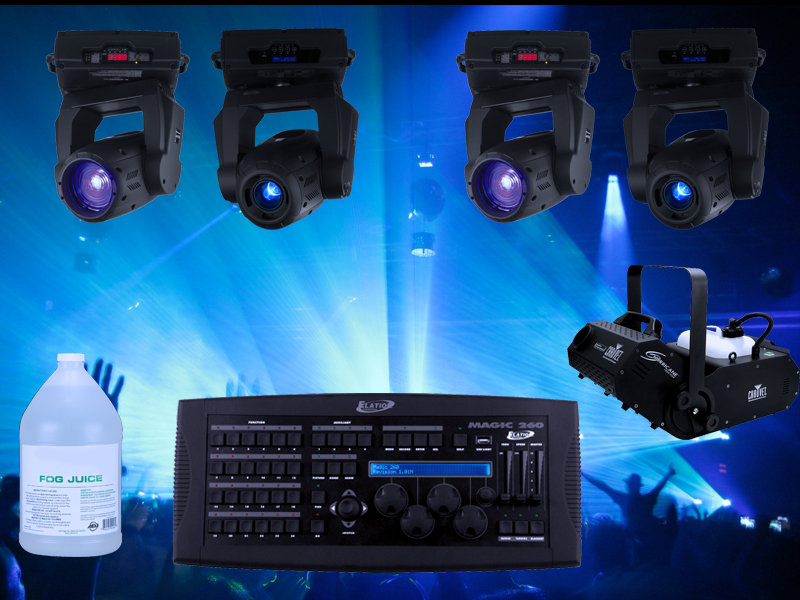

Design 250 System

Design 250 System

CURRENTLY OUT OF STOCK

Two Design Wash 250 Lights
- CONTROL FEATURES
- RDMX - Remote DMX Addressing
- USITT DMX-512 (16-bit resoultion)
- 16 DMX Channels
- 4 Digit L.E.D. Display
- On board menu settings
- 3-pin XLR serial input/output
- Sound active mode

  OPTICAL SYSTEM
- High luminous-efficiency parabolic reflector
- 150 mm Fresnel lens
- Lux 28,000 @ 18º @ 2.5M

  MOTORIZED ZOOM
- Remote DMX adjustable 18° to 28° beam angle

  CMY - COLOR MIXING SYSTEM
- The CMY color mixing system is based on graduated cyan,
- magenta, and yellow color filters.
- A continuous range of colors may be achieved by varying the amount of each filter from 0 to 100%
- 30 CMY color macros

  COLORS
- 8 dichroic-filters plus white
- Red, green, blue colors and 3200K, 5600K, UV filters
- Continuous, variable speed, color scrolling in both directions (rainbow effect)

  BEAM EFFECTS
- 180° beam shaper
- Wide and flat beam can be rotated by 90°
- Frost filter for softer beam

  SHUTTER/DIMMER
- Variable speed strobe effect (1-13) flashes per second
- Pre-set variable/random strobe and dimming pulse effect
- Dual Flag mechanical dimming system

  PAN/TILT
- Automatic Pan / Tilt position correction
- Maximum PAN-movement 630° in 2.0 secs (default) or 540° (user selectable) / 16 bit
- Maximum TILT-movement 265° in 1.5 secs / 16 bit
- Vector Mode with blackout

  RIGGING
- 2 X ¼ turn fastening Omega Clamps

  POWER SUPPLY
- Fuse: 8A (120V) or 4A (220V)
- Magnetic Ballast
- Voltage: AC 98V, 120V, 220V, 208V, 230V, 240V 50/60Hz
- Power Consumption 400W

  DIMENSIONS & WEIGHT
- 14”L x 14”W x 22.5”H
- 59 lbs.
Two Design Spot 250 Lights
- CONTROL FEATURES
  • RDMX - Remote DMX Addressing
  • USITT DMX-512 (16-bit resoultion)
  • 16 DMX Channels
  • 4 Digit L.E.D. Display
  • On board menu settings
  • 3-pin XLR serial input/output
  • Sound active mode
- OPTICAL SYSTEM
  • High output luminous-parabolic dichroic reflector
  • Beam Angle 17°
  • Replacable Beam 14°, 20° angles (included)
  • All lenses are anti-reflection coated
- COLORS
  • 8 Dichroic filters, 7 color, UV + White
  • Continuous, variable speed, color scrolling in both directions (rainbow effect)
  • More color combinations possible by overlaying the multi-color dichroic gobo and the colors on the color wheel
- GOBOS
  • 2 gobo wheels, 14 total gobos, 11 metal, 3 glass
  • 7 interchangeable, indexable, rotating gobos plus open
  • 7 interchangeable, static gobos plus open
  • Metal Gobo Size: 26.9mm outside diameter, 23mm image diameter
  • Glass Gobo Size: 26.7mm outside diameter, 23mm image diameter
  • Gobo Overlay (Gobo Morphing)
- SHUTTER/DIMMER
  • Variable speed strobe effect (1-13) flashes per second
  • Pre-set variable/random strobe and dimming pulse effect
  • Dual Flag mechanical dimming system
- IRIS
  • Beam narrow to wide (5% - 100%)
  • Variable speed iris macros
  • Small to large and large to small
- FROST
  • Variable Frost Control
  • Hard edge to soft edge
- PRISM
  • 3-facet rotating/Indexing Prism
  • Both directions at variable speeds
  • Macro-function for rotating gobos/rotating prisim combinations
- FOCUS
  • Motor driven focus from near to far
- LAMP
  • Phillips MSD 250/2 (250W, 8500°K, 3000 HRS)
- PAN/TILT
  • Automatic Pan / Tilit position correction
  • Maximum PAN-movement 630° in 2.0 secs (default) or 540° (user selectable) / 16 bit
  • Maximum TILT-movement 265° in 1.5 secs / 16 bit
  • Vector Mode with blackout
- DIMENSIONS & WEIGHT
  • 14”L x 14”W x 22.5”H
  • 51 lbs.
- POWER SUPPLY
  • Fuse: 8A (120V) or 4A (220V)
  • Magnetic Ballast
  • Voltage: AC 98V, 120V, 220V, 208V, 230V, 240V 50/60Hz
  • Power Consumption 400W
Elation Magic 260 Controller
- PAN/TILT Joystick
- 4 data wheels for moving light control and data entry 3 pin DMX Output 260 total moving light channels 4 On/Off buttons for switch pack control Internal fixture library Control up to 24 fixtures (up to 16 channels each) 1152 programmable scene 264 programmable shows MIDI Input and Thru 24 multi function buttons USB input for optional work light or memory device 80 character backlit LCD display for easy programming Audio input Internal microphone Go button for manual show triggering Master fader for moving light dimmer control Separate speed and fade faders Help button for recording scenes and shows in English & Spanish Effects engine includes circle, figure 8 and pan & tilt movement with wave effect capability Pan/Tilt and Radius adjustment for built in effects engine Power: 9-12VDC, 500mA Dimension (LxWxH): 19” x 7” x 4” / 483x178x102mm
- Weight: 10 lbs. / 4.5 kgs,
FREE Chauvet Hurricane 1800 Fog Machine
FREE gallon of fog juice
