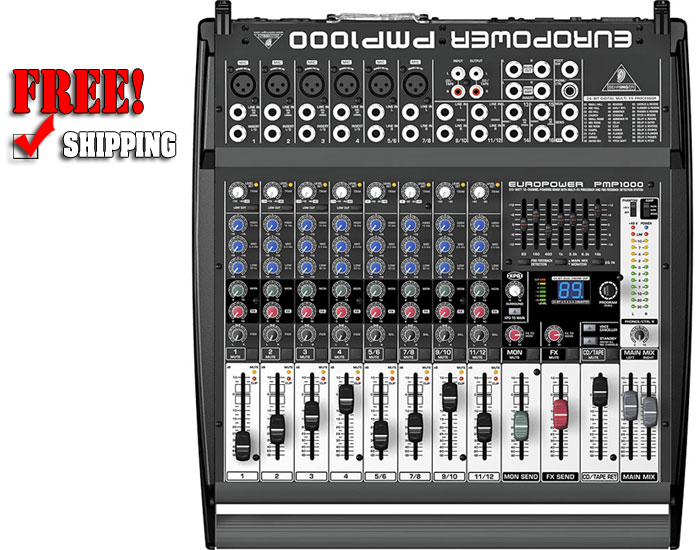

PMP1000
500-Watt 12-Channel Powered Mixer with Multi-FX Processor and FBQ Feedback Detection System

• PDF Manual

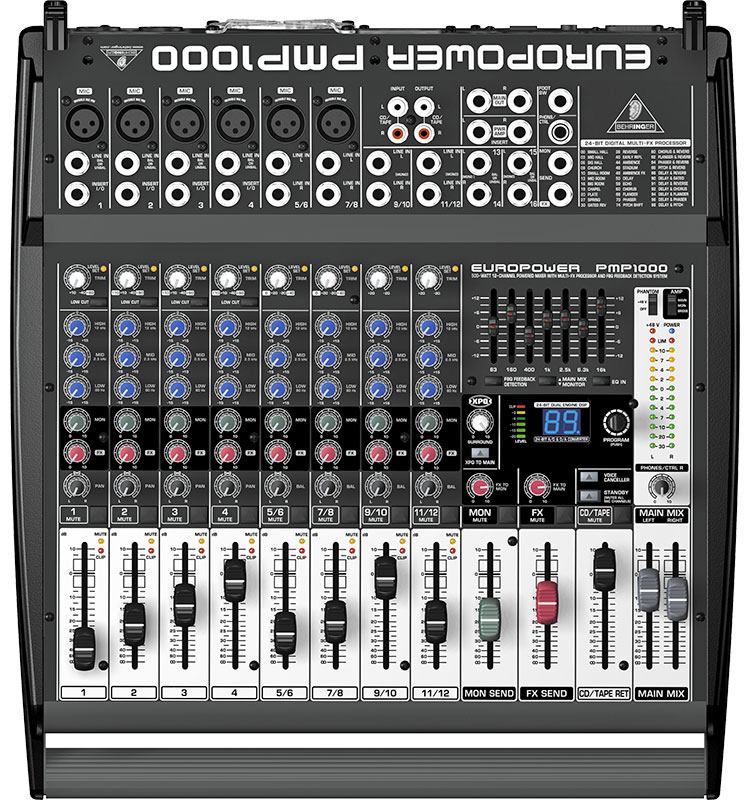

• Large Image

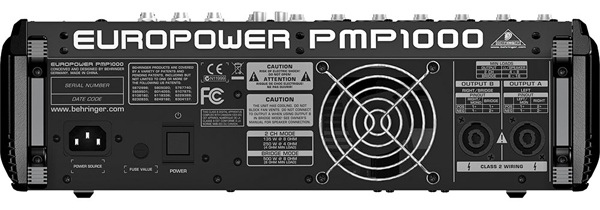

• Image of back
• Ultra-compact 2 x 250-Watt stereo powered mixer (500 Watt bridged mode)
• Revolutionary amplifier technology: enormous power, incredible sonic performance and super-light weight
• Ultra-compact design at nearly half the weight of conventional powered mixers means no more lugging around dead weight
• 12-channel mixer section features 4 mono and 4 stereo channels, 2 additional stereo inputs plus separate tape returns
• Studio-grade 24-bit stereo FX processor with 100 awesome presets including reverb, chorus, flanger, delay, pitch shifter and various multi-effects
• Revolutionary FBQ Feedback Detection system instantly reveals critical frequencies for easy feedback removal
• 6 high-quality mic preamps (4 IMP “Invisible” Mic Preamps) with switchable +48 V phantom power for condenser microphones
• Effective, extremely musical 3-band EQ, switchable Low cut filter and Clip LEDs on all mono channels
• Stereo 7-band graphic EQ allows precise frequency correction of monitor or main outputs
• Voice Canceller function removes singer’s voice from recordings for Karaoke applications
• Selectable stereo (main L/R), double mono (main/monitor) or bridged mono amplifier operation mode
• Standby switch mutes all mic channels during breaks while background music is provided via tape inputs
• Breathtaking XPQ 3D stereo surround effect for more vitality and enhanced stereo image
• Adjustable stereo CD/Tape input for connecting external signal sources
• Multi-functional stereo Preamp outputs for added flexibility
• Internal switch-mode power supply for maximum flexibility (100 - 240 V~), noise-free audio, superior transient response and low power consumption for energy saving
• High-quality components and exceptionally rugged construction ensure long life
