| Xcelon 575 |
| |
|
- PDF Manual
- Quicktime Movie
- WMV Manual
- PDF Brochure
- PDF Photometrics
- CONTROL FEATURES
RDMX Remote DMX Address
USITT DMX-512
10 DMX Channels
4 Digit L.E.D. Display
3 pin XLR serial input/output
Sound active mode
- OPTICAL SYSTEM
High output luminous-parabolic dichroic reflector
19-degree Beam Angle
Optional Beam Angles
All lenses are anti-reflection coated

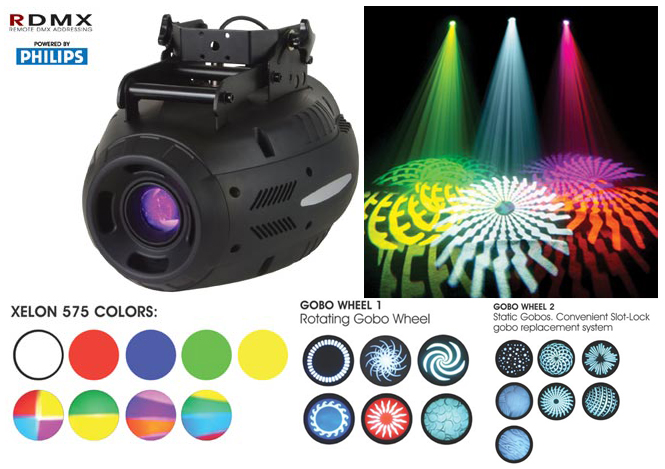

- COLORS
4 dichroic filters plus open
Split and shared color combinations
Continuous, variable speed, color scrolling in both directions (rainbow effect)
More color combinations possible by overlaying the multi-color dichroic gobo and the colors on the color wheel
- SHUTTER/DIMMER
Variable speed strobe effect (1-10) Flashes per second
Pre-set variable/random strobe and dimming pulse effect
Dual Flag mechanical dimming system
- PRISM
3, 5, and 9 facet prisms rotating in both directions at variable speeds
Macro-function for rotating gobos/rotating prisim combinations
- FOCUS
Motor driven remote focus from near to far
- LAMPS
Phillips MSR 575/2 (575W, 7200°K, 1000 Hrs.)
- GOBOS
2 gobo wheels, 13 total gobos, 10 metal, 3 glass
6 interchangeable, indexable, rotating gobos plus open
7 interchangeable, indexable, static gobos plus open
26.9 mm outside diameter, 23mm image diameter
Gobo overlay
- RIGGING
1 x Heavy duty yoke
1 x Safety cable hole
- POWER SUPPLY
8A or 4A Fuse
Magnetic Ballast
Voltage: AC 98, 120, 208, 220, 230, 240V 50/60zh
Power Consumption: 800W
- DIMENSIONS & WEIGHT
15”L x 11”W x 18”H
61.5 lbs.
|
| Accessories for this light |
ZB-MSR-575 Spare Bulb |
575 watt, metal halide, single-ended gas discharge
Regular Price $199.99
Our Price $145.99
|
