Chauvet Amhaze

Description

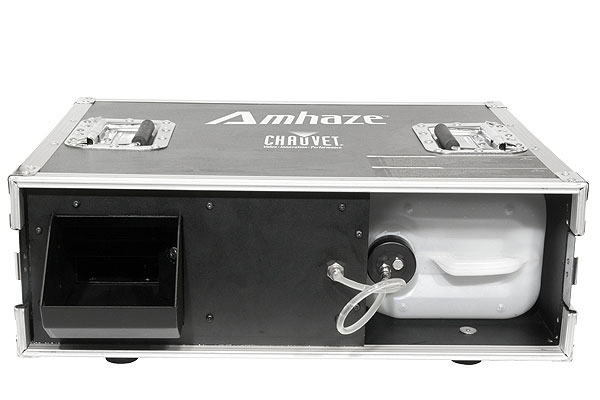

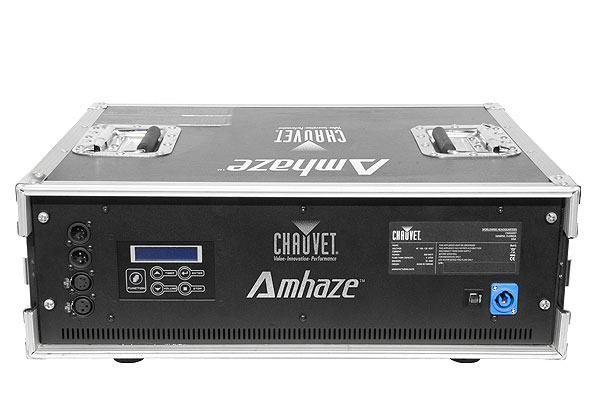

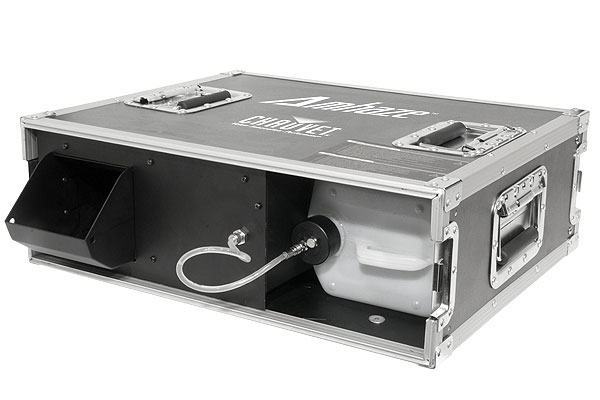

Amhaze™ is a road-ready, water-based haze machine well suited for large-scale applications. The unit is housed in a durable, low-profile road case that is designed to be set on the deck or flown from truss, complete with Neutrik® powerCON® connections. Amhaze™ has a short four-minute heat up time and a super dry 3,000 cubic feet per minute of continuous output. An onboard display easily assigns DMX addressing while an onboard timer system adjusts the output of haze in intervals and duration times (without DMX control).

Features:

• Professional, water-based haze machine with continuous output will provide a thin or thick veil of haze for any application
• Haze output and blower speed are adjustable via DMX or the LCD screen
• NEUTRIK® powerCON® A locking power connector provides a secure connection that will not come loose
• Onboard 3-pin and 5-pin DMX connectors offer great flexibility
• The flight case design is suitable for rugged environments
• Onboard timer system with adjustable interval and duration times (1 ~ 200 sec) which outputs haze when needed
• Built-in circuit breaker prevents damage to the machine due to faulty electricity
• The included vent accessory allows you to angle the fog in either a downward or upward angle
• DMX channels: 2
• Output: 3,000 cfm
• Heat-up time: 4 min
• Tank capacity: 5 L
• Fluid consumption: 5 mL / min
• Power and current: 820 W; 6.95 A operating (120 V, 60 Hz)
• 1,660 W; 7.22 A operating (230 V, 50 Hz)
• Input voltage: 120 VAC, 60 Hz or 230 VAC, 50 Hz (not switchable)
• Weight: 35 lbs (15.87 kg)
• Size: 21.5 x 24.75 x 8 in (546 x 629 x 203 mm)
• PDF Manual
