Chauvet FlareCON Air

Description

The FlareCON™ Air utilizes cell phones and tablets and turns them into wireless DMX controllers. It works with all CHAUVET® DJ Freedom series fixtures as well as all D-Fi™ products for versatile control over your rig.

The built-in Wi-Fi™ transmitter connects with cell phones and tablets running the FREE FlareCON™ app, to allow the user to control the connected lighting fixtures. The FlareCON™ Air then converts the Wi-Fi™ signal from the phone or tablet into D-Fi™ and wirelessly transmits those signals to an unlimited number of receivers.

The FlareCON™ app is available for both Android™ and iOS® in both phone and tablet versions. The FlareCON™ Air can also connect directly to a DMX controller to send wireless signals out to an unlimited number of D-Fi™ lights or receivers. The FlareCON™ Air is fully FCC and RTTE compliant.

Features:

• FlareCON™ App is now available for download: Android | iOS
• Compact, easy-to-use Wi-Fi™ receiver and wireless D-Fi™ transmitter in a single unit
• Compatible with Android™ operating system and Mac iOS® on both smartphones and tablets
• Output can be used in wireless D-Fi™ or wired DMX protocols
• Wirelessly synchronize an unlimited number of D-Fi™-ready fixtures and receivers simultaneously
• Built-in options include manual or automatic channel selection
• Simple navigation and text readout using the OLED digital display

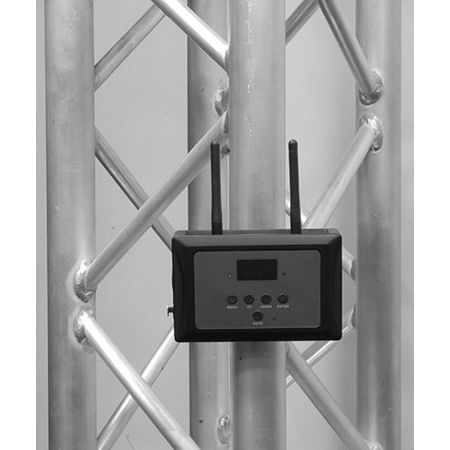

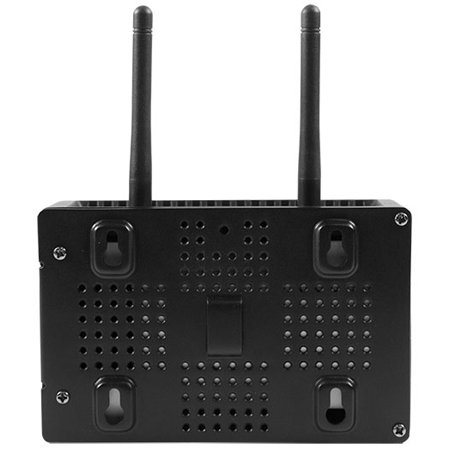

• Mounting options include built-in hook and loop fastener strap, keyhole mounting holes, M10 and M12 threaded holes for direct mounting to truss
• Fully FCC/RTTE compliant
• DMX Channels: 512

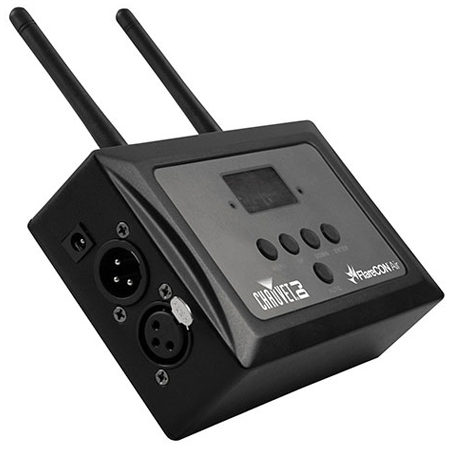

• DMX Connectors: 3-pin XLR
• Operating Frequency: 2.4 GHz
• Antenna connection: RP-SMA
• Max Unobstructed Distance (Wi-Fi™): 100 ft (30.5 m)
• Max Unobstructed Distance (D-Fi™ ): 600 ft (183 m)
• Input Voltage: 9 VDC, 500 mA (external power supply: 100 to 240 VAC, 50/60 Hz)
• Power and Current: 4 W, 0.1 A @ 120 V, 60 Hz
• Power and Current: 4 W, 0.1 A @ 230 V, 50 Hz
• Weight: 1.2 lb (0.6 kg)
• Size: 5.59 x 3.58 x 1.81 in (142 x 91 x 46 mm)
• Approvals: CE, FCC
