VBAR 270
Compact LED Color Wash |
Regular Price
$599.99
Our Price $349.99
|
- Quicktime Moive
- WMV Movie
- VBAR 270 DMX Traits (PDF)
- VBAR 270 Unit Dimensions (PDF)
- VBAR 270 User Manual (PDF)

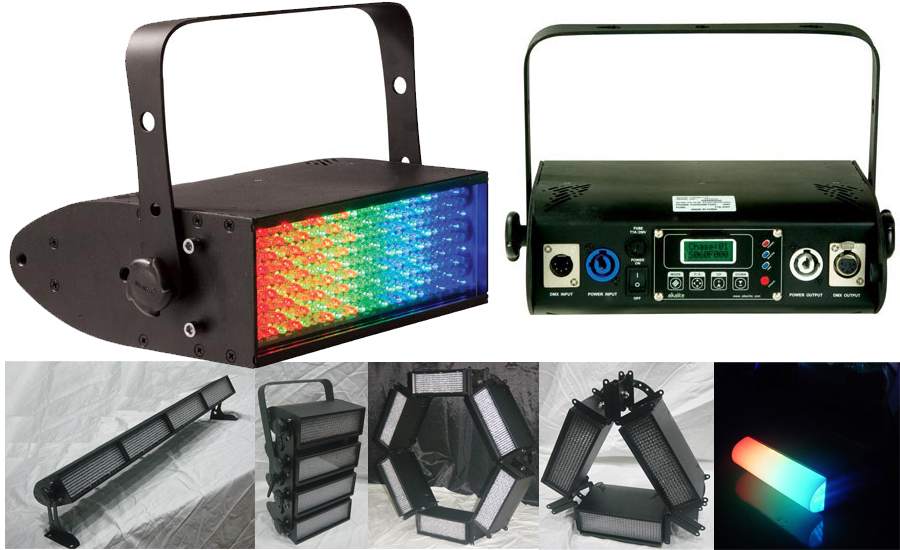

- The Alkalite, VBAR 270 is a versatile, compact and light weight, LED color wash for any indoor application. This fixture features 270, 5mm LEDs with RGB color mixing allowing the user to achieve a vast array of colors. The VBAR 270 operates via DMX-512, Master/Slave or Auto Chase mode with 19 built-in color chase programs. The unit has a 15-degree beam angle, has a variable strobes function and may be electronically dimmed (0-100%). With lower power draw (30W), low heat emission and flicker-free operation the VBAR 270 is the perfect light tool to any stage setting.
FEATURES:
- 270 x 5mm LED’s - (90 Red, 90 Green, 90 Blue)
- Seamless RGB color mixing
- Infinite Color possibilities
- 15-degree beam angle
- 2024 LUX @ 1M / 570 LUX @ 2M
- Long Life L.E.D. (rated at 100,000 Hours)
- Low power consumption
- Low heat emissions
- Built-in Power Supply and DMX 512 Control
- Flicker-free operation for television and film (520Hz)
- Electronic Switching Power Supply (90-260V, 50/60Hz)
CONTROL SPECIFICATIONS:
- USITT-DMX 512
- 5, 8, 11, 14, 20, 23 control channel modes
- LCD display with 4-button DMX control
- 5-pin XLR in/out
CONTROL FEATURES:
- 3 control modes: DMX (manual); Master/Slave; Auto Chase
- 19 pre-programmed chases
- Strobe effect
- 7 static colors with intensity control
- 0-100% Dimming
POWER SUPPLY:
- 100-240V AC, 50/60Hz (Multi-voltage)
- Neutrik Powercon for power connection
- Power Consumption: 30 watts
RIGGING:
- Mounting bracket
- Optional mounting bracket kits
DIMENSIONS & WEIGHT:
- (LxWxH): 10” x 3.75” x 8.5” / 250x93x212mm
- 8 lbs. / 3.3 kgs.
|
