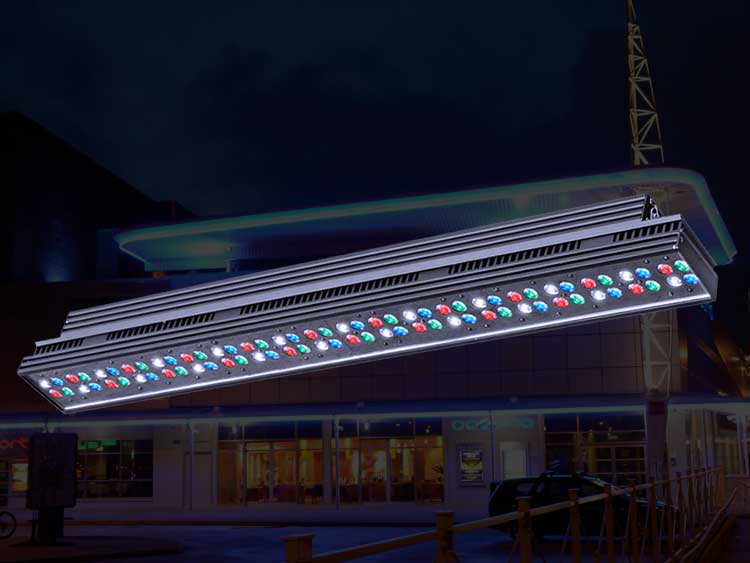

| COLORado Batten 80i |
 |
Regular Price
$4999.99
Our Price $3999.99
|
- PDF Manual
- CONTROL FEATURES
- 3, 4, 9, 12, 16, 60 or 80-channel DMX-512 LED bank system (with ID addressing)
- Operating modes
- 3 channel mode: RGB control
- 3 channel mode: HSV control (hue, saturation and value)
- 4 channel mode: RGBW control
- 9 channel mode: RGBW, ID, dim, macro, automatic, custom, balance, super color
- 12 channel mode: RGBW, ID, dim, macro, automatic, custom, vector, balance, Hyper Color™
- 16 channel mode: RGBW of 4 separate sections
- 60 channel mode: individual control of each LED (for pixel mapping, excluding white)
- 80 channel mode: individual control of each LED (for pixel mapping)
- RGB color mixing with or without DMX controller
- Remote addressing system (RAS)
- Color temperature presets (3,200°K - 10,000°K) or create your own
- Built-in automated programs via master/slave or DMX
- Program and recall custom programs via master/slave or DMX
- ADDITIONAL FEATURES
- Extremely bright 2W/3W LEDs
- Hyper Color™ allows the LEDs to be driven at higher current for increased output
- 15° lenses installed
- 30° lenses optional
- Includes bracket to attach multiple fixtures together for hanging as a single unit
- Additional power output for daisy chaining units together (max 4 or 9 units @ 120V)
- LCD display with lock-out feature
- Low power consumption
- SPECIFICATIONS
- Beam angle: 12° x 35°
- Field angle: 25° x 50°
- Footcandles (normal): 550
- Footcandles (high power): 1,057 \
- Lux (normal): 5,918
- Lux (high power): 11,373
- Light source: 80 (20 2W red, 20 3W green, 20 3W blue, 20 3W white) LEDs 50,000hrs
- Current draw (normal): (peak 151W @ 120V) (inrush 240W @ 120V)
- Current draw (high power): (peak 311W @ 120V) (inrush 240W @ 120V)
- Power: Autoswitching 90V – 250V 50/60Hz
- Weight: 23.7lbs (10.8kgs)
- Size: 39.4in x 4.1in x 3.6in
- 1000mm x 104mm x 92mm
- 2-year limited warranty
|
| COLORcon - controller for the COLORado lights |
 |
Regular Price $239.99
Our Price $179.99
|
- 4- channel DMX-512 Controller
- Controls up to 66 COLORado 3TM (using ID addressing
- 16 editable programs
- 8 color wash
- 8 color changing
- 8 programmable shows each with 100 steps
- Full RGB color mixing
- Control of each pod
- Playback schedules via internal clock
- Digital LCD display with password protection
- Power : DC12V 500mA 110V or 230V
- Weight : 1lb (.5kg)
- Size: 22.5in x 7.5in x 8.3in
178mm x 127mm x 51mm
- 2 - year limited warrenty
|
|
|
