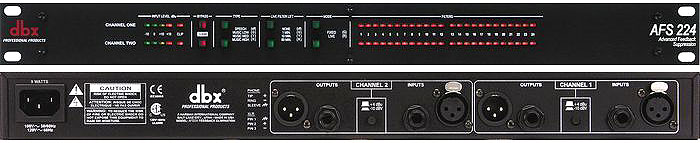

The dbx AFS-224 Stereo/Dual Mono Feedback Suppression Processor provides all the feedback elimination processing and control necessary for both installation and live use. The dedicated processor offers up to 24 filters per channel with filter Qs up to 1/80th of an octave. The AFS-224 also has selectable modes, live filter lift, and types of filtration, all readily available via the intuitive user interface.

dbx AFS-224 Stereo/Dual Mono Feedback Suppression Processor Specifications:

• Dynamic range: >110dB A-weighted, >107dB unweighted
• THD+N: .002% typical at +4dBu, 1kHz, 0dB input gain
• Frequency response: 20Hz-20kHz, +/-0.5dB
• Interchannel crosstalk: >80dB typical
• Crosstalk input to output: >80dB

dbx AFS-224 Stereo/Dual Mono Feedback Suppression Processor Features:

• Advanced Feedback Suppression technology
• 24 progammable filters per channel
• Stereo or dual independent channel processing
• Live and fixed filter modes
• Selectable filter lift times
• Application-specific filter types, including Speech and Music Low, Medium and High
• Input channel metering
• 24 LED per channel filter metering
• XLR and TRS inputs/outputs
