| Output
voltage at 1000 Hz, 5cm/sec. |
11
mV |
| Channel
balance at 1 kHz |
1.5 dB |
| Channel
separation at 1 kHz |
22
dB |
| Channel
separation at 15 kHz |
- |
| Frequency
range at - 3dB |
20-20.000
Hz |
| Frequency
response |
20-18.000
Hz -3dB |
| FIM
distortion at recommended tracking force, DIN 45.542 |
<
1% |
| Tracking
ability at 315Hz at recommended tracking force |
90
µm |
| Compliance,
dynamic, lateral |
12µm/mN |
| Stylus
type |
Spherical |
| Stylus
tip radius |
R
18 µm |
| Equivalent
stylus tip mass |
0.6
mg |
| Tracking
force range |
3.0g (30-50 mN) |
| Tracking
force, recommended |
4.0
g (40 mN) |
| Tracking
angle |
20°
|
| Internal
impedance, DC resistance |
1680
Ohm |
| Internal
inductance |
920
mH |
| Recommended
load resistance |
47
kOhm |
| Recommended
load capacitance |
200-400
pF |
| Cartridge
colour, body/stylus |
Black/White |
| Cartridge
weight |
18.5
g |

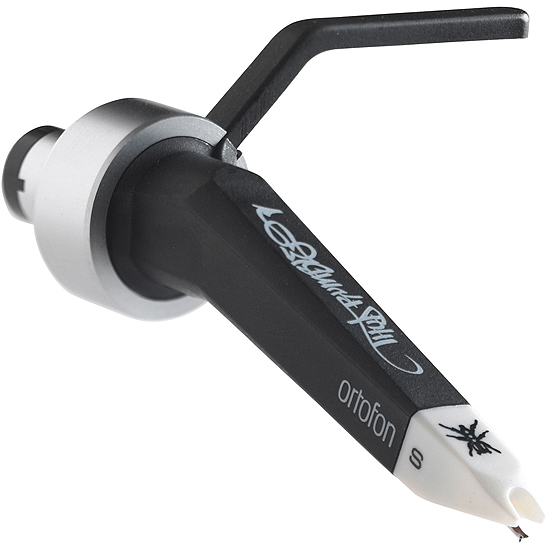

| Replacement stylus |
Q-Bert |
