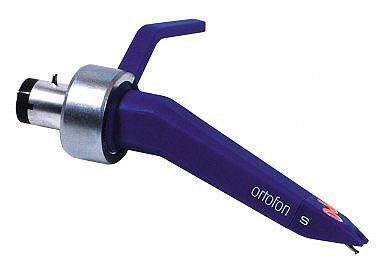

Concorde DJ

* Free extra stylus and deluxe carrying case!
Regular Price $199.95
Our Price $149.99
Extra Stylus-DJS 01
$39.99
  • Cartridge Cases
    Don't forget your case!
    Output voltage at 1000 Hz, 5cm/sec. 6 mV
  • Channel balance at 1 kHz 2 dB
  • Channel separation at 1 kHz 23 dB
  • Channel separation at 15 kHz 15 dB
  • Frequency range at - 3dB 20-22.000 Hz
  • Frequency response 20-20.000 Hz +2/-3dB
  • FIM distortion at recommended tracking force, DIN 45.542 < 1%
  • Tracking ability at 315Hz at recommended tracking force 80 µm
  • Compliance, dynamic, lateral 9 µm/mN
  • Stylus type Special elliptical
  • Stylus tip radius R 13/25 µm
  • Equivalent stylus tip mass 0.6 mg
  • Tracking force range 2.0-4.0 g (20-40 mN)
  • Tracking force, recommended 3.0 g (30 mN)
  • Tracking angle 20°
  • Internal impedance, DC resistance 750 Ohm
  • Internal inductance 450 mH
  • Recommended load resistance 47 kOhm
  • Recommended load capacitance 200-600 pF
  • Cartridge colour, body/stylus Blue/Blue
  • Cartridge weight 18.5 g
